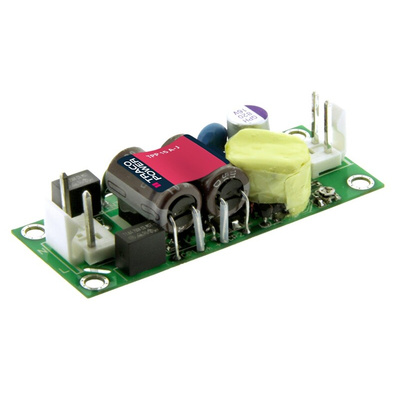

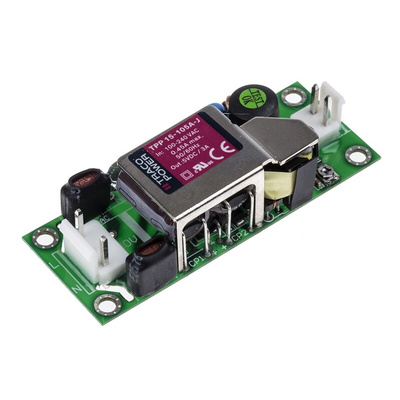

TRACOPOWER Switching Power Supply, TPP 15-105A-J, 5V dc, 3A, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Traco Power Switching Power Supply, 500ms Maximum Startup Time, 19g Weight - TPP 15A-J Series - TPP 15-105A-J

Looking for balanced energy delivery for your medical appliances? Prioritise safety with this switching power supply from Traco Power. It regulates AC input signals from 85 to 264V and DC voltages between 120 and 370V, delivering a stable 5V DC output that's suitable for low-voltage components. The unit has a low maximum leakage current of 75μA, which limits the risk of accidental circuit activation. This means it's suitable for applications that come into direct contact with a patient. As it's 86% efficient, this PSU makes the most of supply with minimal heat loss.

Features & Benefits

• Power rating of 15W makes it fit for light-duty applications
• Reliable in challenging settings thanks to an operating temperature range between -40°C and +85°C
• Reinforced double I/O isolation protects the circuit from sudden power spikes for enhanced safety
• Cools by natural convection, eliminating the need for a heat sink

Applications

• X-ray machines
• Research laboratories
• Aerospace industry

How reliable is this power supply?

Thanks to a mean time between failures of more than 3 million operating hours, you can count on this piece of kit to go the distance.
