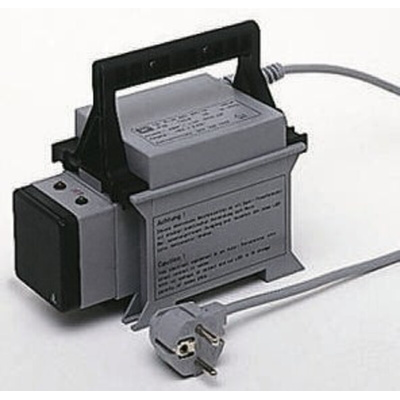

EJET1000, Block 1000VA Enclosed Autotransformer, 230V ac Primary, 110 V ac Secondary

Step-Down Autotransformers, E-JET Series

The E-JET step-down autotransformers allow the adjustment and operation of 110 V appliances connected to 230 V mains.
Using autotransformers achieves an approx. 50% lower nominal rating compared to transformers with galvanically isolated windings.
To ensure the output voltage to earth is not greater that the nominal output voltage, the output voltage (monitored electronically) is only switched when the safety plug is correctly inserted in the mains socket.
Short-circuit protection by means of a fuse in the input circuitry
Insulator for housing with carrying handle
In accordance with VDE 0550 for protection class 1

Vorschalt-Spartrafo E-JET 250 / 500 / 1000

E-JET 1000 Autotransformer Data Sheet
