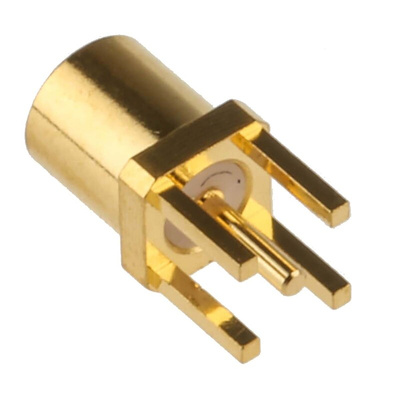

MMCX-J-P-H-ST-TH1, Samtec MMCX Series, jack Through Hole MMCX Connector, 50Ω, Solder Termination, Straight Body, Разъем

Samtec Coaxial Connector, Female Type, 50Ω Impedance - MMCX Series - MMCX-J-P-H-ST-TH1

Looking for a reliable workmate to add telecommunication connectivity to your PCB? Choose this coaxial connector from Samtec. It gives you a port for coaxial cables and external devices that transmit frequencies up to 6GHz. The unit's beryllium copper contacts are highly conductive, so you can count on this unit for a steady electrical connection. The gold plating on the contacts stands up to corrosion for long-lasting use in demanding industrial conditions.

Features & Benefits

• Through-hole mounting provides a simple, vibration-proof connection to the PCB
• Threaded mating ensures a secure link between the jack and the cable to prevent accidental loosening
• Performs reliably in demanding industrial environments, thanks to a wide operating temperature range of -65°C to +125°C

Applications

• Telecommunications networks
• Broadcast sector
• Industrial automation

What cables can I use with this coaxial connector?

You can hook several cables into this connector to suit your setup's needs. You can use a straight SMA-to-SMA cable (229-5174), a right-angle MMCX-to-MMCX cable (229-5175) or a BNC-to-MCX cable (208-9144), making this unit a versatile choice.
