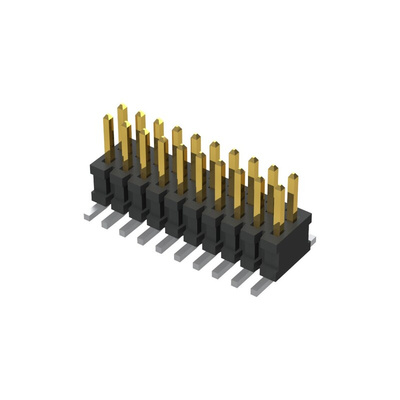

FTSH-110-01-L-DV-K, Samtec FTSH Series Straight Surface Mount Pin Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Samtec Pin Header, 3.4A Current Rating, Gold-Plated Contacts - FTSH Series - FTSH-110-01-L-DV-K

Linking wires to circuit boards is a pushover using this pin header from Samtec. It has 20 contact pins arranged in two symmetrical rows, delivering multiple connection capabilities. Pins made from highly conductive gold-plated phosphor bronze ensure data and power flow smoothly for a reliable signal. A current rating of 3.4A per contact means this unit suits high-powered systems. The module stands up to industrial vibrations thanks to a robust soldered installation.

Features & Benefits

• Surface-mount type for fast installation
• Black liquid crystal polymer insulation prevents overheating during use
• 1.27mm pitch makes it compatible with standard PCBs
• Performs reliably in extreme environments, operating in temperatures ranging between -55°C and +125°C

Applications

• Domestic appliances
• Military and defence equipment
• Industrial automation

Is this pin header unshrouded?

Yes. As it's unshrouded, it comes without any extra casing surrounding the pins for a flexible fit in your set-up.

What type of connector systems does this pin header fit into?

The unit is suitable for use with board-to-board and wire-to-board connector systems, making it a versatile choice.
