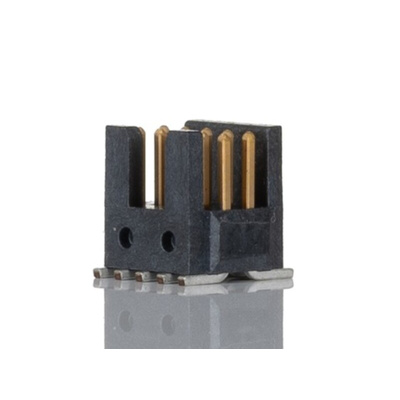

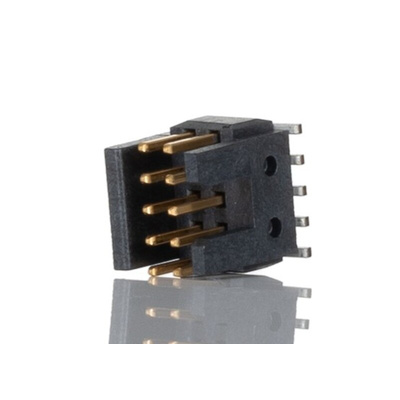

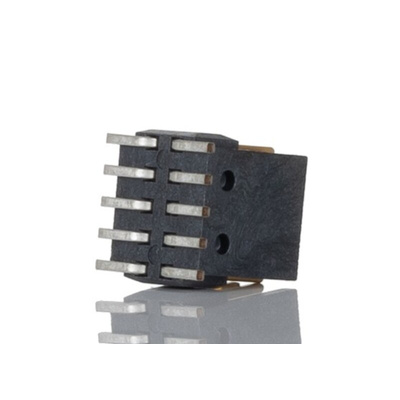

FTSH-105-01-L-DV-K, Samtec FTSH Series Straight Surface Mount Pin Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

Samtec Pin Header, Gold Contact Plating, 1.27mm Pitch - FTSH Series - FTSH-105-01-L-DV-K

Put safety first when transmitting signals through your circuit boards with this pin header from Samtec. It has 10 contacts made of highly conductive phosphor bronze for a reliable connection. Gold plating improves their resistance to corrosion, making this unit fit for use in harsh environments. Thanks to a 1.27mm pitch, the pins are prevented from touching each other to reduce the risk of short circuits. This component supports data transfer rates up to 8Gbps, so you can rest assured of high-speed transmissions. Surface mounting ensures a firm hold on your PCB to stand up to heavy vibrations.

Features & Benefits

• Contacts arranged in two rows to keep your connections organised
• Black liquid crystal polymer insulation minimises the risk of electric shock
• Current rating of 3.4A makes it the right choice for light-duty applications
• Compatible with board-to-board and wire-to-board connection systems for versatility

Applications

• Laptop and desktop computers
• Gaming consoles
• Process and packaging equipment

How long does this pin header last?

This unit handles up to 250 mating cycles, so you can count on it for long-lasting performance.
