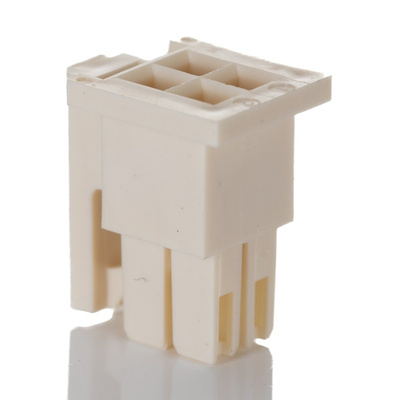

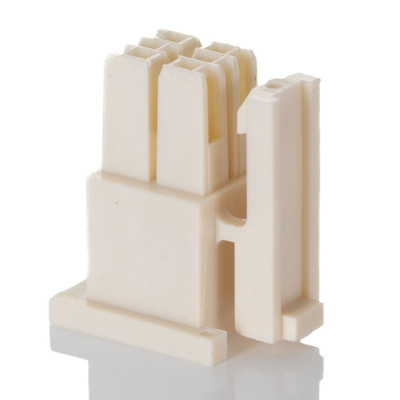

IPD1-02-D-K, Samtec, IPD1 Male Crimp Connector Housing, 2.54mm Pitch, 4 Way, 2 Row, Корпус разъема

Samtec Crimp Connector Housing, Keyed Polarisation, Nylon 66 Construction - IPD1 Series - IPD1-02-D-K

Keen to make robust connections to your PCB header? Let this dual-row crimp connector housing from Samtec lend a hand. Its male gender means it has pin or plug-style contacts that mate securely with a compatible female crimp terminal, such as those in Samtec's CC79R series. The non-conductive nylon 66 casing ensures the part is safe to handle. As a 4-way option, you can join up to four crimped wires or selectively populate the housing by leaving space between linked wires to meet your creepage and clearance needs.

Features & Benefits

• Integrated plastic latch secures crimp contacts in place inside the housing
• Works with electrical systems up to 4.8A for application versatility
• Suits PVC or Teflon fluoropolymer wires from 30 to 20 AWG, so you have connection options
• Gold-plated phosphor bronze contacts for high-quality signal transfer

Applications

• Factories
• Medical equipment
• Automotive production
• Testing and measurement

What's the benefit of this component's keyed polarisation?

Keyed polarisation means there's a right and wrong way to connect. You can be sure you've wired it up correctly each time, as this feature makes it impossible to get mixed up when installing.

Datasheet

Datasheet Series
