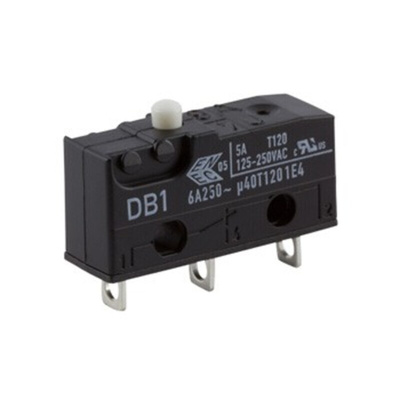

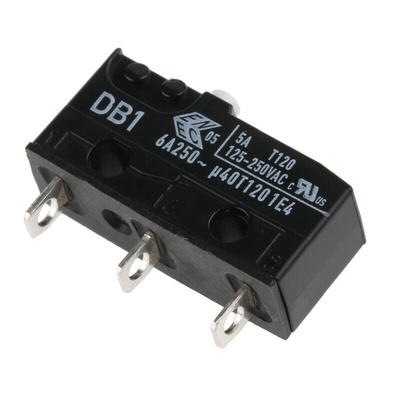

DB1C-A1AA, ZF Button Micro Switch, Solder Terminal, 6 A @ 250 V ac, SPDT, Микропереключатель

DB Series Microswitches

DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures.

Rated for currents up to 10 amp at 250VAC
Range of auxiliary actuators available
Mechanical life: up to 15 x 106 operations
Wide variety of terminal types available
V4 case size

Approvals

ENEC, UL

ZF Miniature Microswitch

The ZF DB series miniature Microswitch has a button spherical head actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.

Features and Benefits

Operating force is 1.47N
Operating temperature rating ranges between -40°C and +120°C
V4 case size
Mechanical life is more than 15x106

Certifications

IP50 rated
UL approved
CSA certified
VDE certified
SEV certified
SEMKO certified
KEMA certified
DEMKO certified
NEMKO certified
OVE certified
BEAB certified
SETI certified

Approvals

ENEC; UL

ENEC KEMA 2020823-01
