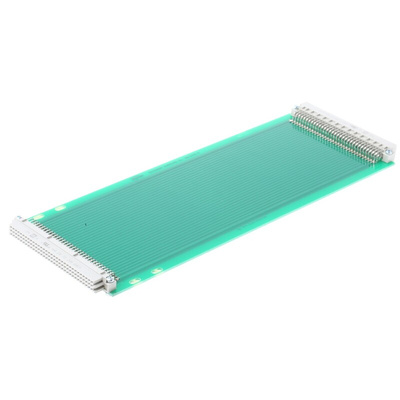

RS PRO 96 Way Double Sided DIN 41612 Extender Board Extender board FR4 281.6 x 100 x 1.6mm

RS PRO 96 Way Double-Sided DIN 41612 Extender Board Adapter FR4 281.6 x 100 x 1.6 mm

This double-sided extender board from RS PRO allows you to test your printed circuit boards (PCB) in single and double-height Eurocard formats. You can use it to bring a circuit card out of its enclosure to test or debug it before mass programming or assembly.

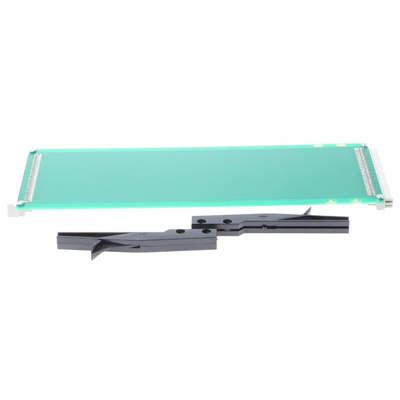

You can easily plug this board directly into a subrack connector using the unique support/ejector mechanism at the front to support the board you're testing. This product has a solder resistant coating that prevents solder bridging and keeps your fingers stain-free.
Extender boards are commonly used in equipment and systems where you need enhanced graphics, high definition displays and target tracking as well as integrated display processing and navigational control. These units are tested against electrostatic discharge (EDS) criteria and meet Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, so you can rest assured the hazard of discharge is minimised.

Features and Benefits

• Epoxy glass fabric laminate base material
• DIN 41612 connection
• Copper thickness of 35 μm
• Dimensions of 281.6 x 100 x 1.6 mm
• FR4 material grade
• 96 contacts
• Two sides
• Extender board type
