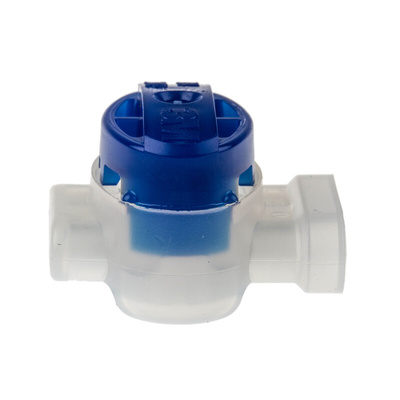

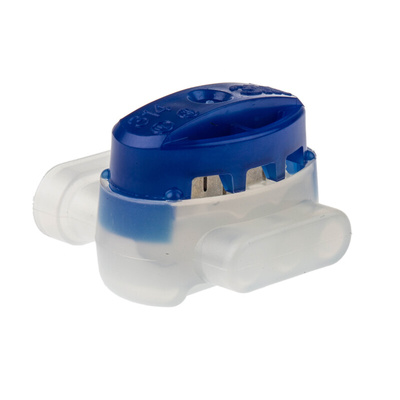

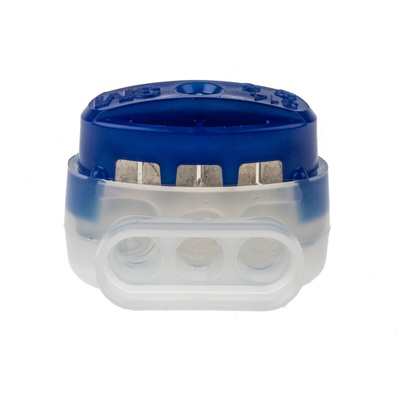

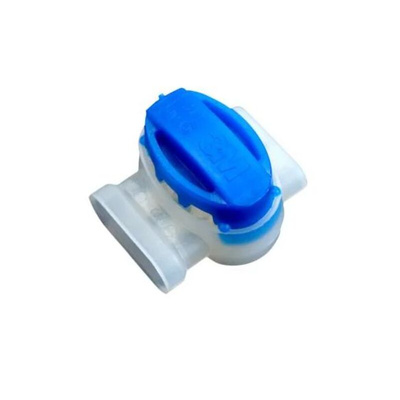

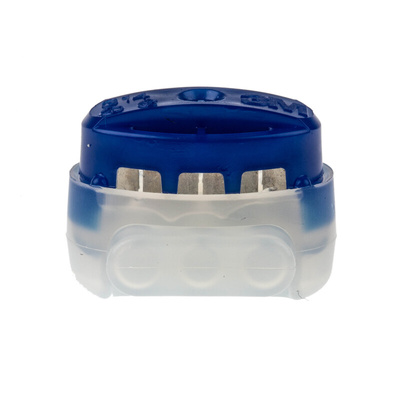

Scotchlok 314 quick splice connector

From 3M, these IDC shunt connectors are ideal for tool-less cable termination. Insulation Displacement Connectors work by simply pressing a sharp insert through the cable jacket, creating quick, simple and secure termination.

Features and Benefits

• Terminal or shunt IDC connector for cables of 0.5 mm² to 1.5 mm² with insulation of a maximum diameter of 3.8 mm.
• A mineral oil prevents corrosion and promotes sealing.
• Highly versatile
• Unique ’U’ contact provides a dependable electrical connection up to 600V
• Quick and easy to use - simply snap shut without stripping or twisting the wire
• UL listed, VDE Certified, IEC 60998-3-2 tested
• Moisture resistant in wet environment applications when used with distribution box
• Rating 15A
• Dimensions 24.1 (D) x 11.9 (H) x 23.4 (W) mm
• Operating Temperature range: -40 °C to +105°C
• Housing material: Nylon

Applications

IDC Connectors feature a sharp internal metal insert that safely penetrates wire insulation with a simple pressing motion. Once it is locked in place, the connector securely holds the wires in place, creating a quick and easy wire connection. These connectors are particularly useful for automotive accessories, marine connections and lighting applications.

Why Choose 3M?

3M are a trusted name in cabling and cable connectors. In everything from convenient domestic solutions to complex industrial set ups, 3M provide cables and electrical connectors to suit your needs. RS Components combines its excellent customer service with a wide range of high quality 3M products to provide the best support possible for your installation or project.

Approvals

UL 486C for 600 V max.,
CSA C22.2

Datasheet

3M IDC Datasheet
