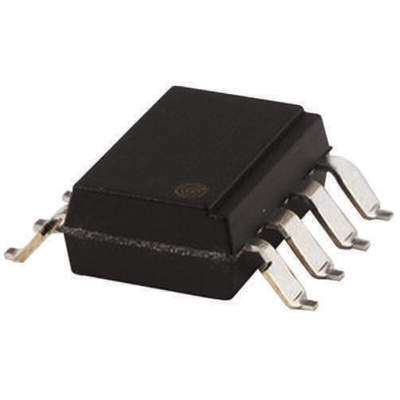

Isocom, 6N137VSMT&R AC Input Optocoupler, Surface Mount, 8-Pin SMD

Optocoupler, Logic Output, Isocom Components

The 6N137 consists of a GaAsp emitting diode and a unique integrated detector. The photons are collected in the detector by a photo diode and then amplified by a high gain linear amplifier that drives a Schottky clamped open collector output transistor. The circuit is temperature, current and voltage compensated. The unique isolator design provides maximum DC and AC circuit isolation between input and output while achieving LSTTL/TTL circuit compatibility.

LSTTL/TTL Compatible: 5V Supply
Ultra High Speed
Low Input Current Required
High Common Mode Rejection
Guaranteed Performance Over Temperature
3000Vdc Withstand Test Voltage
