322733, TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M6 Stud Size, 1mm² to 2.6mm² Wire Size, Обжимные контакты

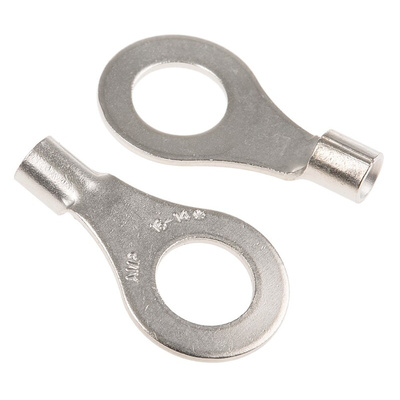

TE Connectivity SOLISTRAND STRATO-THERM Heat Resistant Ring Tongue Crimp Terminals

SOLISTRAND STRATO-THERM heat resistant ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM heat resistant ring tongue crimp terminals are made from nickel plated electrolytic copper and are designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM heat resistant ring tongue crimp terminals is 343°C (650°F)

Note

For suitable hand crimp tool see stock number 162-3159

Approvals

-

TE Connectivity STRATO-THERM Terminals and Splices

0-0322733-0 Strato-Therm Ring Tongue Terminal Data Sheet
