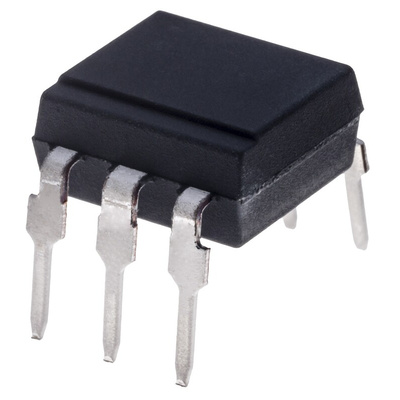

Isocom, MOC3052X AC Input Triac Output Optocoupler, Through Hole, 6-Pin DIP

The MOC3051 and MOC3052 are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a light activated silicon bilateral switch performing the functions of a triac. These photocouplers provide random phase control of high current triacs or thyristors. The MOC3051 and MOC3052 feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads. These devices are mounted in a standard 6 pin dual-in-line package.

High Repetitive Peak Off-state Voltage
VDRM : minimum 600V
High Critical Rate of Rise of Off-state Voltage dv/dt : minimum 1000V/μs
High Isolation Voltage between Input and Output Viso : 5000Vrms
APPLICATIONS:
Solenoid / Valve Controls
Lamp Ballasts
Static AC Power Switch
lnterfacing Microprocessors to 115 and 240Vac
Peripherals
Solid State Relays
Incandescent Lamp Dimmers
Temperature Controls
Motor Controls
