RS PRO Nylon Ball Catch, Задвижка

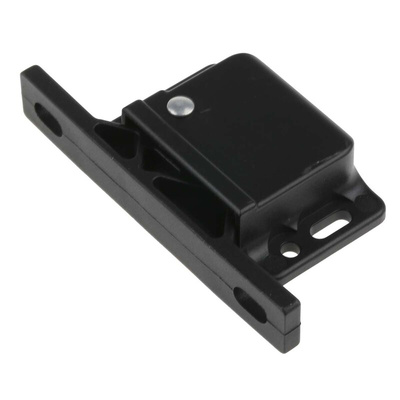

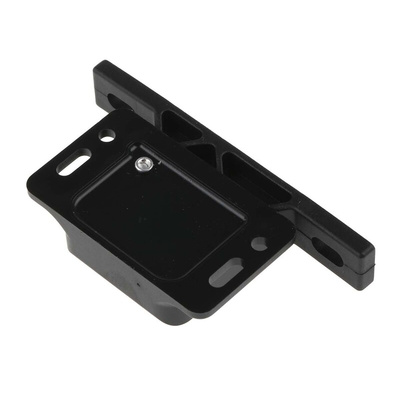

RS PRO Fibreglass Reinforced Nylon Ball Catch

Keep doors to enclosures and cabinets closed with this heavy-duty grabber-type ball catch from RS PRO. Simply push to close and pull to open. It can be screwed or riveted to a door frame or mounted inside of the housing.

The ball catch is made from durable fibre-reinforced nylon and requires a pull force of 44 newtons to be opened. The spring-loaded, over centre action ensures smooth operation.

As part of the reliable RS PRO range, the catch has been tested by engineers to ensure its safety and reliability. It conforms to the American National Standards Institute's Electrostatic Discharge Association (ANSI/ESD S20.20:2014) standard, and British Standard European Norm (BS EN 61340-5-1:2007) electrostatic discharge standards, as well as being RoHS compliant on hazardous substances.

This type of door catch is commonly found in electronic and industrial enclosures.

Features and Benefits

• Ball catch
• Grabber type
• Durable fibreglass-reinforced nylon construction
• Dimensions of 23.5 mm x 11.4 mm x 74 mm / 28 mm x 13.5 mm x 48 mm
• Length of 28 mm
• Width of 13.5 mm
• Height of 48 mm
• Catch fixing hole distance of 40.5 mm
• Strike fixing hole distance of 55 mm
• Fixing hole sizes of 3.4 mm, 3.4 x 8.4 mm, 4.3 x 8.3mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
