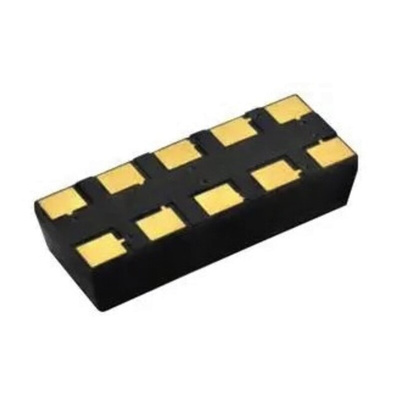

VCNL4200 Vishay, VCNL Ambient Light, Proximity Sensor, 1.5m 2.5 V to 3.6 V 10-Pin SMD

VCNL4200 integrates a high sensitivity long distance proximity sensor (PS), ambient light sensor (ALS), and 940 nm IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip using a CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether a dark or high transparency lens design.

Package type: surface-mount
Dimensions (L x W x H in mm): 8.0 x 3.0 x 1.8
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC
Operates ALS and PS in parallel structure
FiltronTM technology adoption for robust background light cancellation
Supports low transmittance (dark) lens design
Temperature compensation: -40 °C to +85 °C
Low power consumption I2C (SMBus compatible) interface
