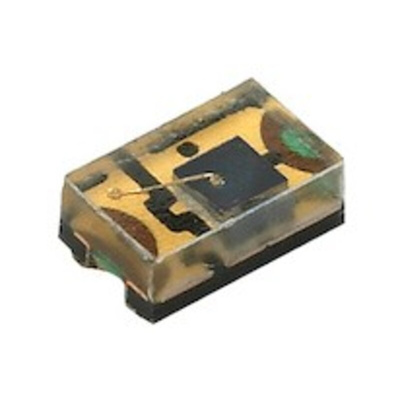

Vishay, VEMD1060X01 IR Si Photodiode, Surface Mount 0805, Фотодиод

VEMD1060X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse. It is a low profile surface mount device (SMD) including the chip with a 0.23 mm2 sensitive area detecting visible and near infrared radiation.

Package type: surface mount
Package form: 0805 top view
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85
Radiant sensitive area (in mm2): 0.23
AEC-Q101 qualified
High photo sensitivity
High radiant sensitivity
Excellent Ira linearity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity: ϕ = ± 70°
Floor life: 72 h, MSL 4, according to J-STD-020
APPLICATIONS:
High speed photo detector
Small signal detection
Proximity sensors
