Vishay, VEMD1160X01 Si Photodiode, Surface Mount 0805, Фотодиод

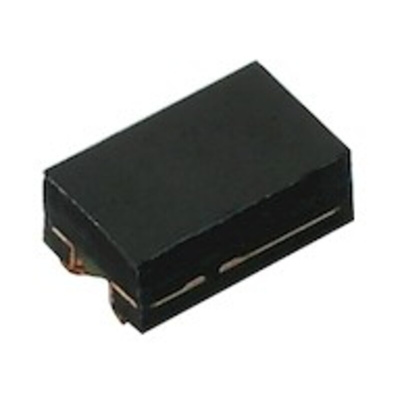

VEMD1160X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse. It is a low profile surface mount device (SMD) including the chip with a 0.23 mm2 sensitive area and a daylight blocking filter.

Package type: surface mount
Package form: 0805 top view
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85
Radiant sensitive area (in mm2): 0.23
Daylight blocking filter
AEC-Q101 qualified
High photo sensitivity
High radiant sensitivity
Excellent Ira linearity
Fast response times
Angle of half sensitivity: ϕ = ± 70°
Floor life: 72 h, MSL 4, according to J-STD-020

APPLICATIONS:
High speed photo detector
Small signal detection
Proximity sensors
