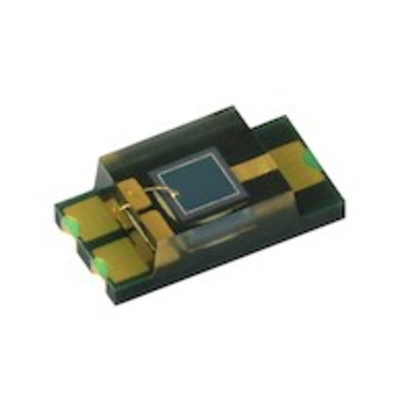

Vishay, VEMD6060X01 IR Si PIN Photodiode, ±70 °, Surface Mount 1206, Фотодиод

VEMD6060X01 is a high speed and high sensitive PIN photodiode with excellent Ira linearity. It is a small surface mount device (SMD) including the chip with a 0.85 mm2 sensitive area detecting visible and near infrared radiation.

Package type: surface mount
Package form: 1206
Dimensions (L x W x H in mm): 4 x 2 x 1.05
Radiant sensitive area (in mm2): 0.85
High photo sensitivity
High radiant sensitivity
Excellent Ira linearity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity: ϕ = ± 70°
Floor life: 72 h, MSL 4, according to J-STD-020
Lead (Pb)-free reflow soldering
AEC-Q101 qualified

APPLICATIONS:
High speed photo detector
Small signal detection
Proximity sensors
