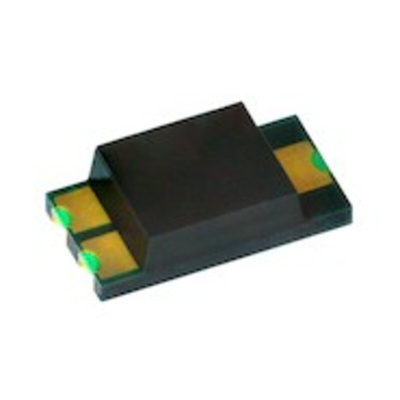

Vishay, VEMD6110X01 IR Si Photodiode, Surface Mount 1206, Фотодиод

VEMD6110X01 is a high speed and high sensitive PIN photodiode. It is a small surface mount device (SMD) ncluding the chip with a 0.85 mm2 sensitive area and a daylight blocking filter matched with IR emitters operating at wavelength of 830 nm to 950 nm.

Package type: surface mount
Package form: 1206
Dimensions (L x W x H in mm): 4 x 2 x 1.05
Radiant sensitive area (in mm2): 0.85
High photo sensitivity
High radiant sensitivity
Daylight blocking filter matched with 830 nm to 950 nm emitters
Fast response times
Angle of half sensitivity: ϕ = ± 60°
Floor life: 72 h, MSL 4, acc. J-STD-020
Lead (Pb)-free reflow soldering
AEC-Q101 qualified
APPLICATIONS:
High speed photo detector
