TMCJG6VP0010Y, C & K Pin Plunger Snap Action Micro Switch, Solder Terminal, 1/2 A @ 125 V dc, 15 A @ 125 / 250 V ac, SPST, Микропереключатель

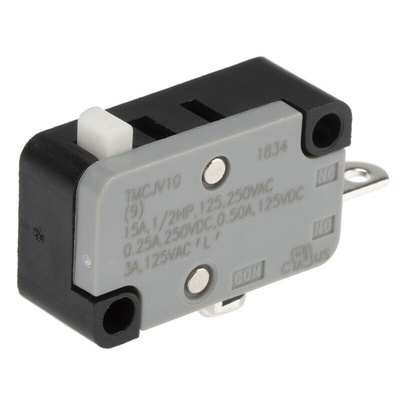

C&K Micro Switch

The C&K pushbutton is a single pole single throw (SPST) normally open switch. It is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated pin plunger lever actuator. It requires a 150gf operating force to energize the spring. The operating current rating is 15A.

Features and Benefits

• Solder terminal type mounting
• Compact design and solder lug terminal
• Copper alloy is used as contact material
• Different variations in actuator style
• High-performance
• Low cost
• Operating temperature ranges between -55°C and 150°C
• Up to 350,000 machine life cycles
• Voltage rating is 250VAC

Applications

• Consumer appliances
• Motors and pumps

Certifications

• CULus
