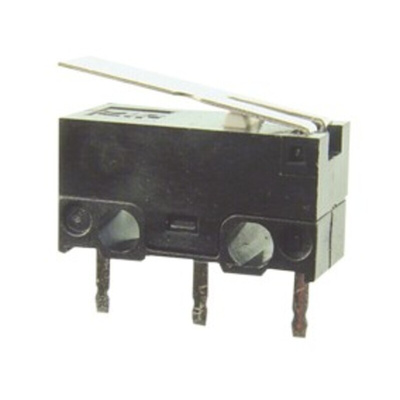

ZMA00A150L04RC, C & K Lever Snap Action Micro Switch, Through Hole Terminal, 100 mA @ 125 V ac, 100 mA @ 60 V dc, SP-CO, Микропереключатель

C&K Micro Switch

The C&K pushbutton is a single pole double throw (SPDT) switch. It is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated simple lever actuator. It requires a 150gf operating force to energize the spring. The operating current rating is 100mA.

Features and Benefits

• Brass alloy is used as contact material
• Compact design and pc pin terminal
• Different variations in actuator style
• High electrical reliability
• High-performance
• Low cost
• Operating temperature ranges between -40°C and 85°C
• Reliable snap action machine
• Through hole type mounting
• Up to 1,000,000 machine life cycles
• Voltage rating is 125VAC

Applications

• Communication devices
• Consumer electronics
• Home security/alarm systems
• PCB detection switches
• Testing equipment

Certifications

• CULus• ENEC• UL 1054• UL 61058
