EL-GFX-DTP-PROBE-G, Lascar EL-GFX-DTP Data Logger for Temperature Measurement, Логгер

Dual Channel GFX Vaccine Monitoring Kit with Graphic Screen and Audible Alarm

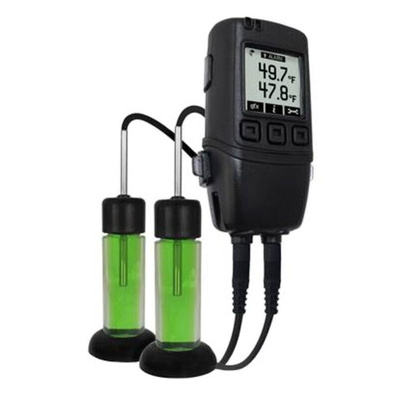

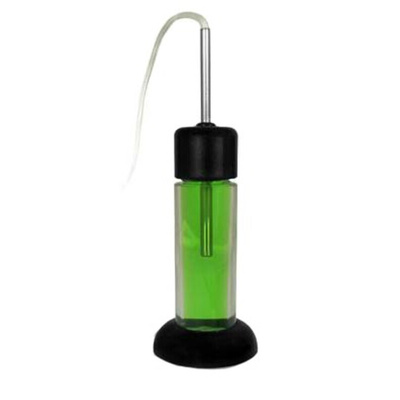

The EL-GFX-DTP-PROBE-G is a vaccination monitoring kit combining a USB dual channel data logger with two glycol bottle probes. The unit stores over 250,000 readings, has an on-screen display showing max, min and last log as well as an on-board graph of the data collected. Buttons allow the user to start, stop and restart the logger in the field and alarm breaches can be registered with both LED and audible alarms. The logger can be battery powered or used with a USB wall adapter. Two channels allow measurement of two areas of a refrigerator or a refrigerator and freezer at the same time

Features and Benefits

-40 to +125°C measurement range
Stores over 250,000 readings
Logging rates between 2 seconds and 1 hour
On screen menu and graphing to start, stop, review and restart the logger in the field
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs

Applications

This data logger has been specifically designed for the pharmaceutical industry but it is also suitable for other applications such as medical, transportation, food and cold chain.
