Lascar EL-USB-TP-LCD+ Data Logger for Temperature Measurement, Логгер

Lascar Data Loggers

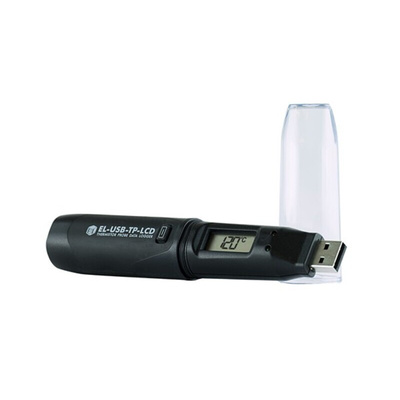

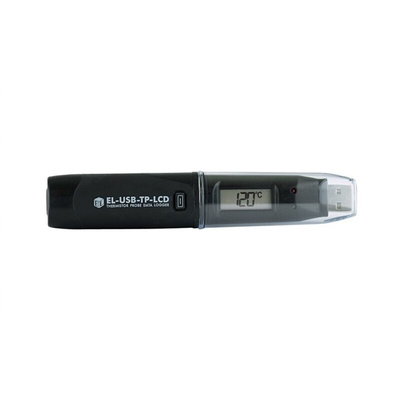

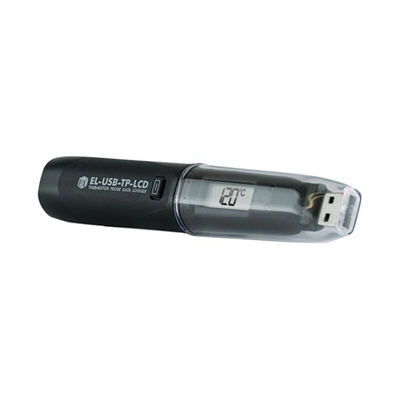

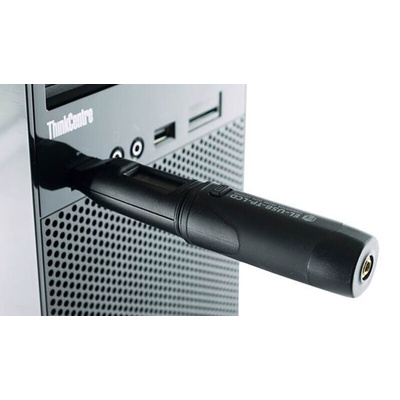

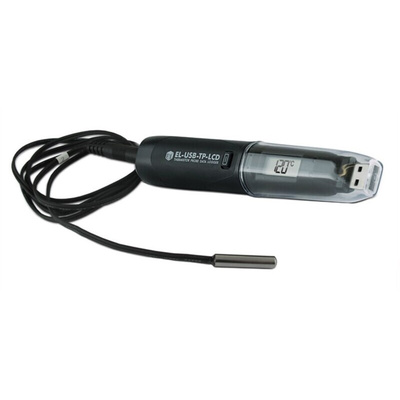

The Lascar EL-USB-TP-LCD+ standalone data logger measures and stores over 32,000 temperature readings between -40°C and 125°C (-40°F and 257°F) and are supplied with a high accuracy thermistor probe. The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values for temperature. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis
.

Features and Benefits

The measurement ranges between 40°C and 125°C (-40°F to 257°F)
Temperature measurement accuracy is ±0.1°C
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
High contrast LCD with two and a half digit temperature display function
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery

Applications

Chilling, freezing and storing food
Vaccine storage

Datasheet

Lithium Battery Test Document
