SGD 21-B, Lascar B Series Digital Voltmeter DC, E -paper Dot Matrix Display 6-Digits, Вольтметр

PanelPilot Compatible E-Paper Dot Matrix Display

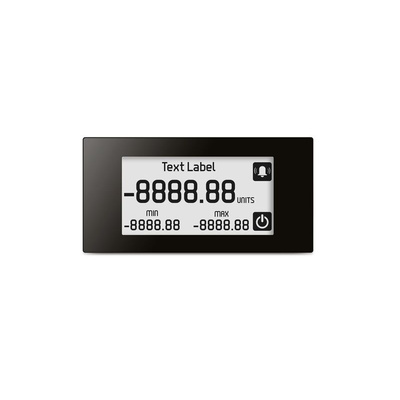

The SGD 21-B from Lascar is a low-cost, ultra low power, sunlight readable, single channel voltmeter with a sleek monochrome e-paper dot matrix display.

The SGD 21-B works with the free PanelPilot B configuration software, which is available for Windows 7, 8 and 10, providing six analogue and digital voltmeter Apps which can be customised to suit individual applications. Elements of each configuration can be changed in the software to include custom labels, scaling and alarms. A splash screen can also be added to the display on power-up.

Once configuration is complete, users can upload it to the SGD 21-B display using the CABLE USB-A-SIL5. Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display.

Features & Benefits

2.1" e-paper dot matrix display
Uses PanelPilot B software to setup and customise the display
6 voltmeter configurations included for free
Reflective e-paper technology is sunlight readable and ultra-low power
Two alarms available for configuration during software set-up
Configurable digital I/O pin
IP54 rating on front panel
Wide operating voltage of 4 - 9V dc

Applications

Scientific Equipment
Test & Measurement
Medical and Healthcare Equipment

Lascar's PanelPilot B Software is available for download free of charge from www.lascarelectronics.com/software.
It's easy to install and use, the configuration software runs under Windows 7, 8 and 10. The software is used to setup the appearance and operation of the App and then upload these settings to the display.
