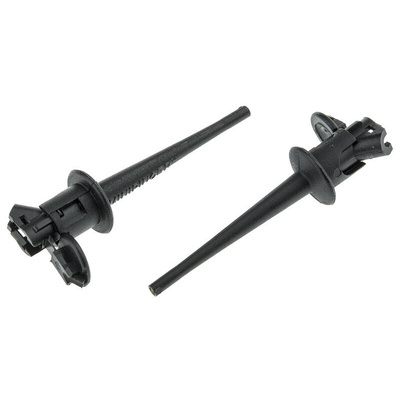

5418-0, Fluke Black Mini Test Clip, 5A Rating, 2.79mm Tip Size

Mini Test Clip

Solder terminated test clips with a snap-on end cap to provide reliable connections. The pincer style contacts are ideal for testing standard DIL packages. Their contact material is gold plated beryllium copper.

Warning

The test leads and prods should NOT be used for testing circuits of more than 50Vac, unless specified otherwise. When testing live circuits, under no circumstances should the fuse rating exceed the quoted rating of the test clips.

FLUKE Mini Test Clip, Glass-Filled Nylon Construction, Solder Termination - 5418 Series - 5418-0

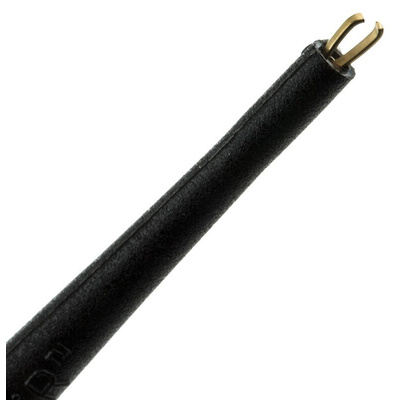

For reliable testing of your electrical components, get a grip with this mini test clip from FLUKE. Popping it on an MTE cable lets you monitor your circuitry using compatible measuring equipment. The pincers are separated by just 2.79mm to allow for easy gripping of smaller elements. This unit accepts wire conductors in a wide size range between 20 and 22AWG, so it's a versatile piece of kit. It has a maximum voltage rating of 300V and handles 5A currents, so it's safe to use with demanding electrical systems.

• Glass-filled nylon insulation to resist wear and abrasion when used in tough work conditions
• Snap-on end cap ensures that your connections are reliable
• Beryllium-copper contacts are corrosion-resistant to allow for use in humid environments

Applications

• Medical device manufacturing
• Automotive technology
• Process instrumentation
• Data acquisition systems
• Consumer electronics and appliances

What's the maximum temperature this unit can operate in?

The mini test clip withstands temperatures of up to +80°C, which makes it ideal for use in harsh working conditions.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet
