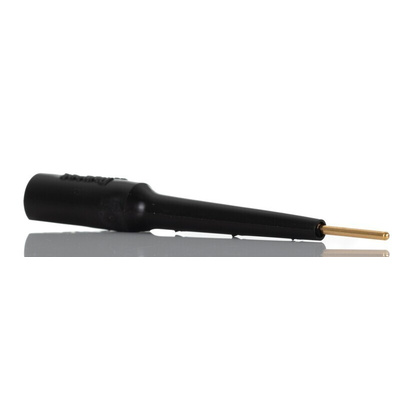

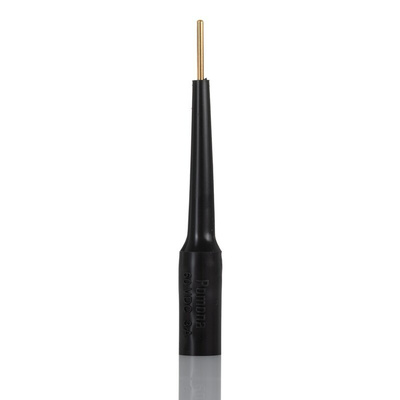

3563-0, Fluke Black, Male Test Connector Adapter With Brass contacts and Gold Plated

Flexible Test Adaptor

Adaptors for the rapid testing of hard-to-get-at contacts of multi-pin/multi-socket rack and panel connectors. The flexible tip allows the testing of adjacent contacts. Its flexibility and full insulation protects against shorting or contact damage.

Warning

The test leads and prods illustrated in this catalogue should NOT be used for testing circuits of more than 50Vac unless specified otherwise. When testing live circuits, under no circumstances should the fuse rating exceed the quoted rating of the test leads.

FLUKE Test Connector Adapter, Banana Jack Body Type, 1.6mm Plug - 3563-0

When you need to access hard-to-reach panel connector contacts for testing purposes, hit the nail on the head with this 3A test connector adapter from FLUKE. It features a male banana jack design to make pairing it with your existing equipment quick and hassle-free. Brass contacts provide reliable conductivity, giving you reliable results. This adapter even supports hands-free testing up to 2500Vrms, so it's safe to use in high-voltage electrical systems.

• Maximum operating temperature of +55ºC shows it can beat the heat in harsh work settings
• Abrasion-resistant PVC insulation along the body reduces the risk of damage from short-circuiting, protecting your equipment
• Contact size of 16AWG, so it's compatible with many standard setups
• Gold plating on the pin prevents rusting, making it ideal for use in humid environments

Applications

• Laboratory equipment
• Audio cables and wires
• Multi-socket connector testing
• Electrical circuit boards

Can I test small circuit components with this unit?

Yes, you can. The flexible tips on this product are designed to reach contacts in close proximity, meaning it's suitable for testing smaller circuit elements.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

4mm Adaptors

Temperature range: + 50°C unless stated
