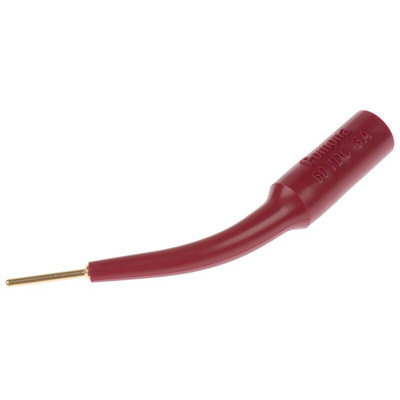

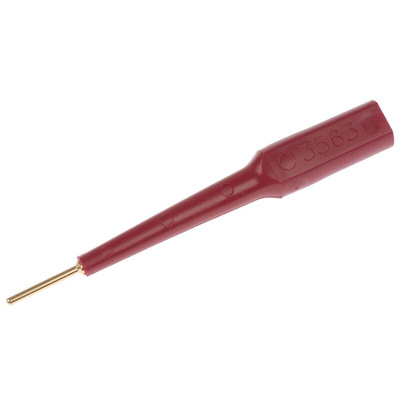

3563-2, Fluke Red, Male Test Connector Adapter With Brass contacts and Gold Plated

Flexible Test Adaptor

Adaptors for the rapid testing of hard-to-get-at contacts of multi-pin/multi-socket rack and panel connectors. The flexible tip allows the testing of adjacent contacts. Its flexibility and full insulation protects against shorting or contact damage.

Warning

The test leads and prods illustrated in this catalogue should NOT be used for testing circuits of more than 50Vac unless specified otherwise. When testing live circuits, under no circumstances should the fuse rating exceed the quoted rating of the test leads.

FLUKE Test Connector Adapter, 3A Current Rating, 1.6mm Plug - 3563-2

Bolster your electrical testing and monitoring regime with this test connector adaptor from FLUKE. You can use it with oscilloscopes and multimeters to test an electrical signal, allowing you to get a full picture of what's going on in your machinery. With its flexible tip, this adapter is designed specifically for getting at contacts in hard-to-reach areas, as well as contacts in multi-pin and multi-socket racks. The plug size of this product is 1.6mm, so you can get a precise fit for your testing equipment.

• Gold-plated brass contact material is resistant to corrosion and wear, so delivers a long service life
• 16AWG contact size makes it easy to get into tight spaces for testing
• Full PVC insulation along the probe body protects against damage from short-circuiting
• 3A current rating suitable for low-power testing

Applications

• Electrical engineering
• Industrial maintenance
• Laboratory testing

What's the maximum voltage this test connector adapter can handle?

This adapter has a maximum voltage rating of 70V DC for hand-held use. The maximum Vrms for hands-free applications is 2,500V DC.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

4mm Adaptors

Temperature range: + 50°C unless stated

Datasheet
