RKF4-07/0.2, Lumberg Automation Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 200mm, Разъем

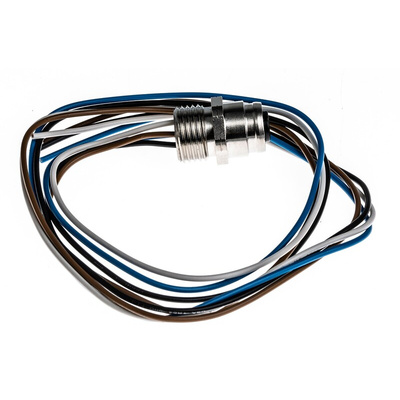

Belden Sensor Actuator Cable, 200mm Length, 4 Core - RKF series - RKF4-07/0.2

This straight female M12 to free-end sensor actuator cable from Belden connects your process control system and transmits data. The M12 connector is designed for rear mounting to your electrical device, while the unterminated end lets you fix the wires to your connector of choice. To ensure optimal conductivity and increase resistance to corrosion, the contacts on the female connector are made from CuSn (a copper-nickel alloy) and plated with 0.3 microns of gold. A rubber O-ring provides further insulate for electrical connection.

Features & Benefits

• PU (polyurethane) contact carrier material keeps the wires protected against dents and fire hazards
• IP67 (ingress protection) rating means the cable resists dust and temporary water submersion
• Ambient temperature range between -25°C and +80°C for installation in extreme cold or heat
• Colour-coded wires for easy identification during maintenance

Applications

• Pneumatic lifts• Coil installations• Automotive production lines• Construction vehicles

What voltage and current ratings does this sensor actuator cable have?

The voltage rating of this sensor actuator cable is 240V (volts), which is the maximum voltage it can withstand. It has a current rating of 4A (amperes), so is suitable for powering small devices.
