RS PRO Switching Power Supply, 12V dc, 1.3A, 15.6W, 1 Output, 88 → 264V ac Input Voltage, Источник питания

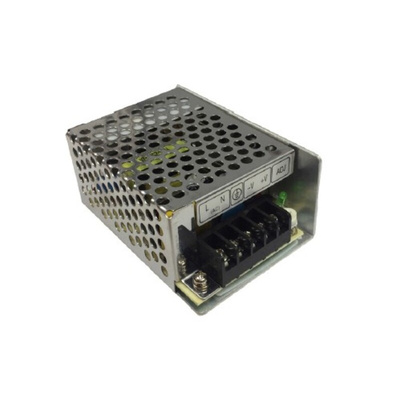

RS PRO 15.6 W Embedded Switch Mode Power Supply SMPS, 12 V DC, Enclosed

This RS PRO 15.6 W embedded switch-mode power supply (SMPS) provides an efficient output current for use in industrial applications. It can transform AC inputs from 88 to 264 V into a reliable output of 12 V DC. You'll find SMPSs used in a variety of settings including manufacturing processes, telecoms and machine assembly.
This unit's chassis mounting design and screw terminals allow you to install it on a base or backplate. The vented metal case encourages airflow and cools the device without the need for power-consuming fans. Built-in overload and short-circuit protections guard against damage.
This type of power supply uses high-frequency switching of a capacitor to efficiently maintain the DC output at the required voltage. This unit is Restriction of Hazardous Substances (RoHS) approved too, meaning it contains only minimal levels of harmful substances.

Features and Benefits

• Enclosed package type
• Single output
• Efficiency of 73%
• Output current of 1.3 A
• Length of 850 mm
• Width of 58.5 mm
• Depth of 36.5 mm
• Weight of 250 g
• Minimum operating temperature of -10ºC
• Maximum operating temperature of +60ºC

RS PRO Datasheet

Power Supplies Guide EN
