RS PRO Switching Power Supply, 12V dc, 20A, 240W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

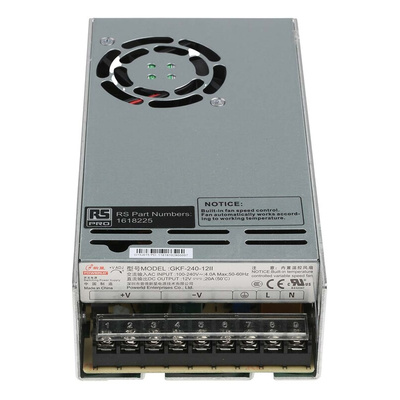

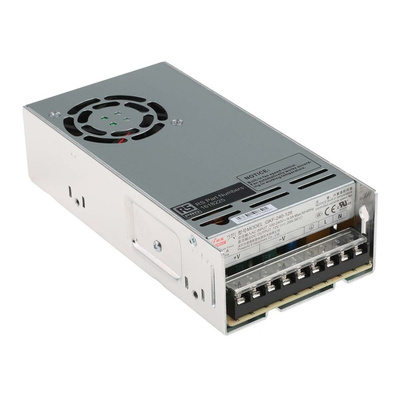

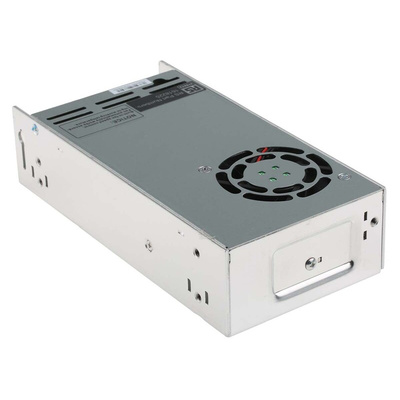

RS PRO, 240 W Embedded Switch Mode Power Supply SMPS, 12 V DC, Enclosed

This 240 W embedded switch-mode power supply (SMPS) uses a switching regulator to convert alternating current (AC) to direct current (DC) more efficiently than traditional units.

It takes mains power from an AC source and converts it to a DC load, which is used to charge a range of electronic equipment requiring a stable and efficient power supply. It's part of our tried-and-tested RS PRO range.

This model is more compact and lightweight than traditional power supply units and has a vented metal case that combats heat dissipation. There are easy-access screw terminals on the sides and a simple chassis mount which can be installed by almost anyone.

This SMPS is RoHS-certified to contain minimal levels of hazardous substances and is suitable for use in both commercial and industrial environments.

Features and Benefits

• Output voltage of 12 V DC
• Output current of 2.5 A
• Power rating of 240 W
• Input voltage of 85 → 264 V AC
• Chassis mounting type
• 199 mm (length) x 99 mm (width) x 50 mm (depth)
• High power density
• Operating temperature of -25°C to +75°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
