RS PRO Switching Power Supply, 24V dc, 10A, 240W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

RS PRO, 240 W Embedded Switch Mode Power Supply SMPS, 24 V DC, Enclosed

This 240 W embedded switch-mode power supply from RS PRO is an electronic circuit that uses a switching element to convert power efficiently.

Switch-mode power supplies, or SMPSs for short, convert alternating current (AC) to direct current (DC), which is the type required by most battery-powered devices and some electronic equipment. They use a switching regulator that continuously turns the current supply on and off, keeping voltage at the desired level while minimising wasted energy.

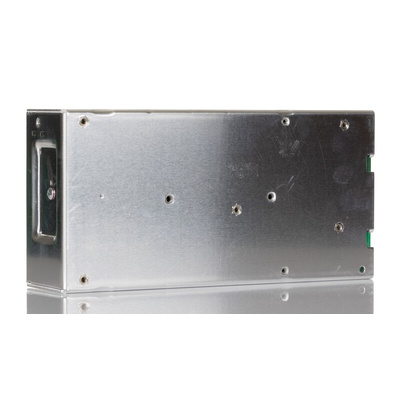

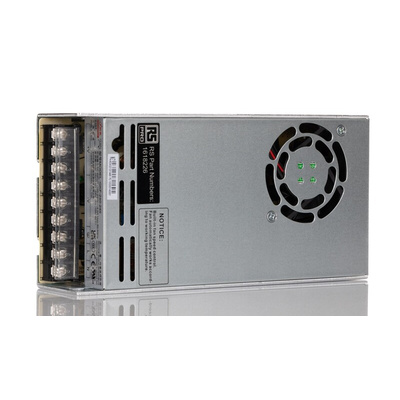

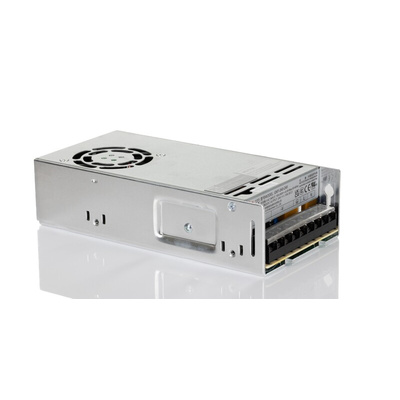

This compact RS PRO model is enclosed in a vented metal casing with easy-access screw terminals for installation. It’s lighter than a traditional AC to DC power supply unit and comes with a sturdy chassis mount.

This product has been rigorously tested for safety and quality. It conforms to the standard EN 61000-3-17 (limitations for harmonic current) and is suitable for use with a wide range of equipment.

Features and Benefits

• Embedded switch mode power supply (SMPS)
• Single output
• Output voltage of 24 V DC
• Output current of 10 A
• Power rating of 240 W
• Input voltage of 85 → 264 V AC
• Chassis mounting
• Enclosed in a vented metal casing
• Length of 199 mm
• Width of 99 mm
• Depth of 50 mm
• Operating temperature of -25°C to +75°C
• Conforms to EN 61000-3-17 (limitations for harmonic current)
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
