RS PRO Switching Power Supply, 12V dc, 25A, 300W, 1 Output, 120 → 370 V dc, 90 → 264 V ac Input Voltage, Источник питания

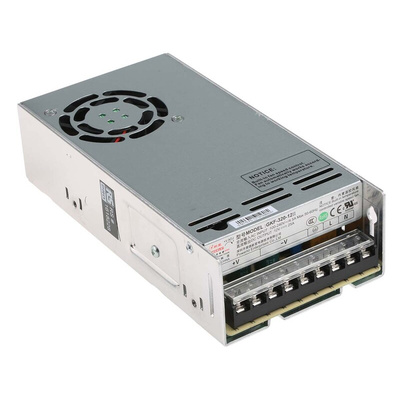

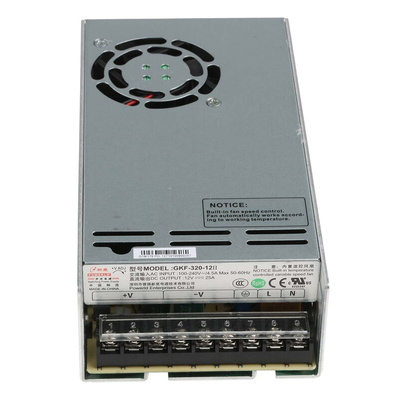

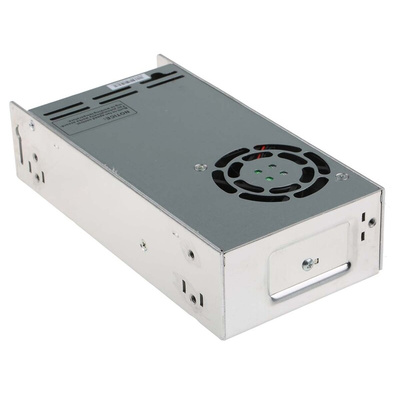

RS PRO 300 W Embedded Switch Mode Power Supply SMPS, 12 V DC, Enclosed

From the RS PRO range of audited and tested power supplies, this embedded switch mode power supply (SMPS) is highly efficient at delivering a continuous fixed voltage output. It's useful for gaming computers as it's supplied in a vented metal casing, offering space for air to circulate and prevent overheating.

The enclosed miniature unit doesn’t take up much space and has screw terminals for easy installation. It has an efficiency rating of 84.5%, meaning it's light on electricity usage. By drawing less power it generates less heat, keeping equipment cool and performing well. It has a power rating of 300 W and output of 12 V.

The SMPS meets international standards for limiting mains voltage distortion and it has a harmonic current compliance of EN 61000-3-19. It also complies to various electrical safety standards and comes with a three-year warranty for your peace of mind.

Features and Benefits

• Embedded switch mode power supply (SMPS) with enclosed casing
• One output
• Power rating of 300 W
• Output voltage of 12 V DC
• Output current of 25 A
• Input voltage of 120 V to 370 V DC and 90 V to 264 V AC
• PCB mounting
• Efficiency rating of 84.5%
• Operating temperature range of -20°C to +65°C
• Dimensions of 199 mm x 99 mm x 50 mm
• UL60950-1, EN60950-1: 2006 IEC60950-1:2005 safety standards compliant
• EN55022 Class B EMC emission safety standards complaint
• EN61000-4-2, 3, 4, 5, 6, 8, 11 EMC immunity safety standards compliant
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Power Supplies Guide EN

RS PRO Datasheet
