RS PRO Switching Power Supply, 24V dc, 8.4A, 200W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

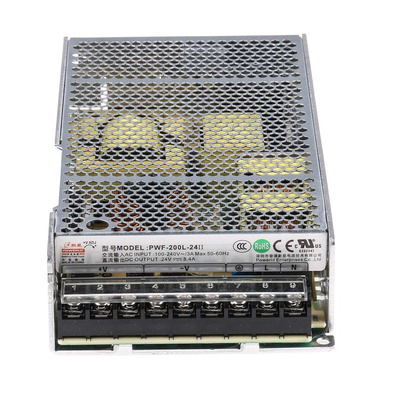

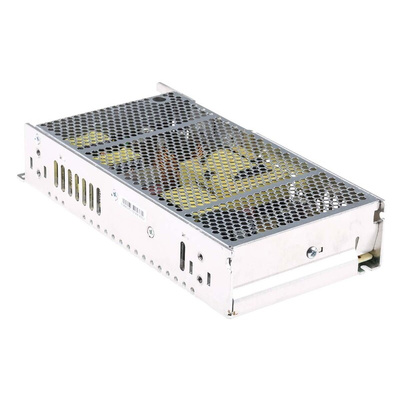

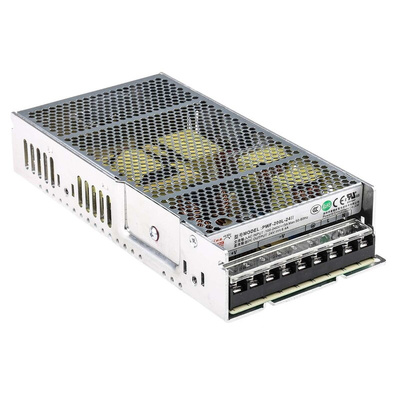

RS PRO 200 W Embedded Switch Mode Power Supply SMPS, 24 V DC, Enclosed

This 200 W embedded switch-mode power supply (SMPS) converts alternating current (AC) into direct current (DC) more efficiently than traditional units. It’s part of our stringently tested RS PRO range.

Any device that plugs into a wall socket uses AC. However, a wide range of electronics and battery-powered devices use DC. SMPSs use a switching mechanism to convert AC into DC, which wastes less energy than linear power supplies.

This SMPS has a long working life and high efficiency. It’s miniature in size but high in power density and has a vented metal case that reduces heat dissipation and improves overall performance. A chassis mount and handy screw terminals make installation a breeze for anyone.

Built to UL and CE manufacturing standards, you can rest assured you're getting a safe product. It's also RoHS certified, so it won't contain dangerous levels of any hazardous substances.

Features and Benefits

• Output voltage of 24 V DC
• Output current of 8.4 A
• Power rating of 200 W
• Input voltage of 90 → 264 V AC
• Chassis mounting type
• 200 mm (length) x 99 mm (width) x 38 mm (depth)
• Operating temperature of -20°C to +70°C
• Harmonic current compliance to EN61000-3-32

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Power Supplies Guide EN

RS PRO Datasheet
