RS PRO Switching Power Supply, 24V dc, 3.2A, 76.8W, 1 Output, 100 → 240V ac Input Voltage, Источник питания

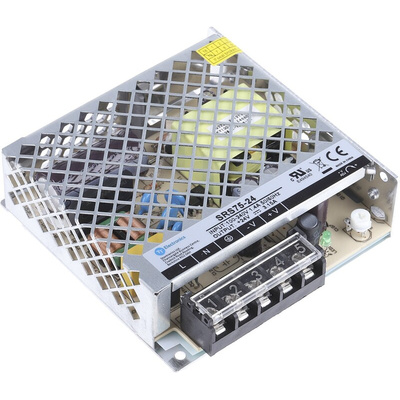

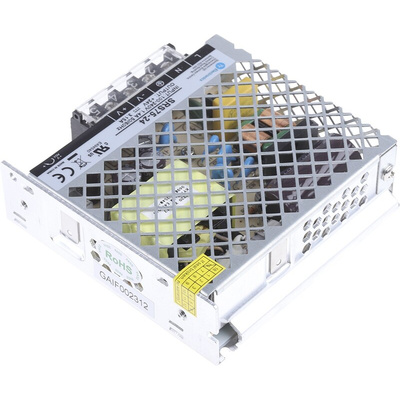

RS PRO 76.8 W Embedded Switch Mode Power Supply SMPS, 24 V DC, Enclosed

This 76.8 W embedded switch mode power supply (SMPS) from RS PRO transfers alternating current (AC) into direct current (DC) more efficiently than traditional units.

Mains electricity is supplied as AC, which is incompatible with certain electronics and battery-powered devices. SMPSs convert AC to DC without consuming too much energy, using a switching regulator to continuously turn capacitors on and off. This also provides a more stable power supply.

This model has a compact and lightweight design. Its vented metal case reduces heat dissipation and the built-in convection cooling prevents it overheating. The SMPS has a long working life and can withstand high levels of vibration. Anyone can install it thanks to its uncomplicated chassis mounting.

This product complying to rigorous UL and CE manufacturing standards and is also RoHS certified, so it contains minimal levels of hazardous substances. It comes with a three-year warranty for your peace of mind.

Features and Benefits

• Output voltage of 24 V DC
• Output current of 3.2 A
• Power rating of 76.8 W
• Input voltage of 100 → 240 V AC
• Chassis mounting type
• 97 mm (length) x 99 mm (width) x 30 mm (depth)
• Weight of 300 g
• Efficiency rating of 90%
• Operating temperature of -30°C to +50°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
