RS PRO Switching Power Supply, 12V dc, 12.5A, 150W, 1 Output, 170 → 264 V ac, 85 → 132 V ac Input Voltage, Источник питания

RS PRO 150 W Embedded Switch Mode Power Supply SMPS, 12 V DC, Enclosed

Looking to upgrade your power converter? This 150 W embedded switch mode power supply (SMPS) is an electronic circuit that uses a switching element to regulate current supply. It's part of our tried-and-tested RS PRO range.

Features and Benefits

SMPSs transfer power from alternating current (AC) to direct current (DC), which is compatible with most battery-powered devices and some electronic equipment.
A switching regulator turns the current supply on and off continuously, minimising energy wastage.

RS PRO

This product has been built to rigorous manufacturing standards, earning CE and UL approval.
It’s also RoHS certified, which means it doesn't contain high levels of hazardous substances. This product has a long working life and is backed by a three-year warranty.

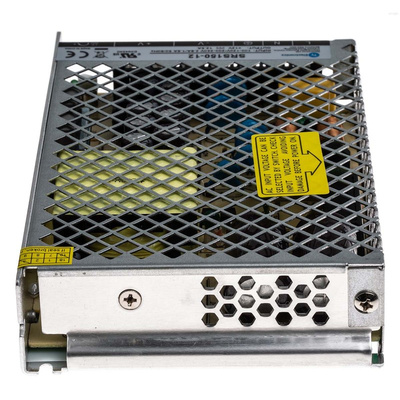

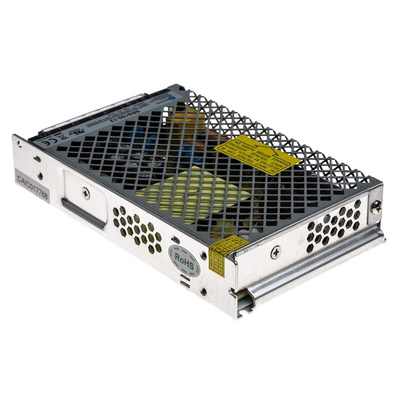

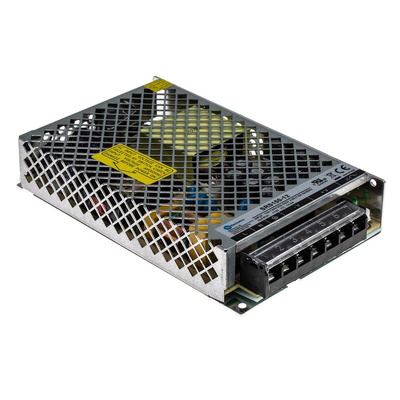

This model has a compact design and a lightweight vented metal case that reduces heat dissipation. It has easy access screw terminals on the sides and an uncomplicated chassis mount for simple installation.

Features and Benefits

Output voltage of 12 V DC
Output current of 12.5 A
Power rating of 150 W
Input voltage of 85 → 132 V AC, or 170 → 264 V AC
Chassis mounting type
159 mm (length) x 97 mm (width) x 30 mm (depth)
Efficiency rating of 88%
Operating temperature of -30°C to +70°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards. They’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
