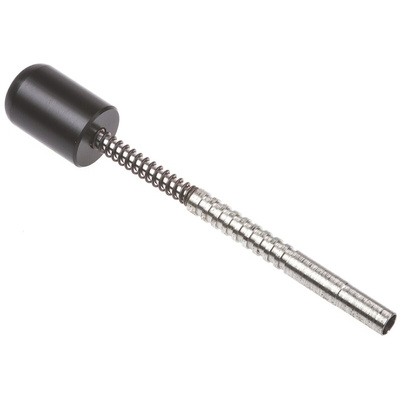

POWER CONTACT EXTRACTION TOOL / 192900-0176, ITT Cannon Crimp Extraction Tool, Cannon Trident Series, Pin Contact, Contact size 16 → 12AWG, Инструмент для извлечения

Plier and Ratchet Crimp Tools

Suitable for QM single and two piece contacts. Plier tool can also be used to crimp contacts for the Circular Sealed Industrial IP67 connector range and the Sealed Industrial IP68 connector range stock no. 489-526. Instructions supplied with tools.

ITT TNM Shielded

The TNM connector range builds on the popular Trident and Neptune ranges from ITT Cannon. They feature full metal construction giving high reliability and durability.

RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types

ITT Cannon Trident Connectors Catalogue
