RS PRO Indoor, Outdoor CCTV Camera, 1280 x 720 Resolution, Камера

RS PRO CCTV Camera, 1280 x 720 Resolution

Fitted with a 1.3 M IMX238 CMOS (complementary metal-oxide semiconductor) Sensor, this CCTV camera from RS PRO produces high-quality analogue video output of 1080p resolution. The camera comes with 40 infrared LEDs and uses DNR (digital noise reduction) and WDR (wide dynamic range) software to provides a clear output, even in dim lighting conditions. With SENS-UP technology, illumination of just 0.008 Lux is enough to capture video in colour.

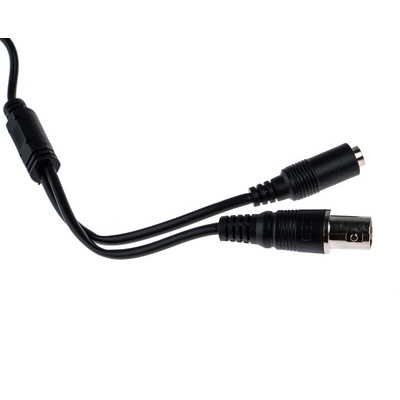

The CVBS (composite video blanking and sync) camera is set up using a standard BNC connector and delivers 1280 H (horizontal pixels) analogue output. A built-in OSD (On-Screen Display) key allows you to easily change the settings of the camera.

This CCTV camera uses a mega f=2.8∼12mm DC IRIS ICR (infrared cut filter removal) Lens. This means it can automatically adjust to changing lighting conditions throughout the day and makes it suitable for use in both indoor and outdoor settings.

Features and Benefits

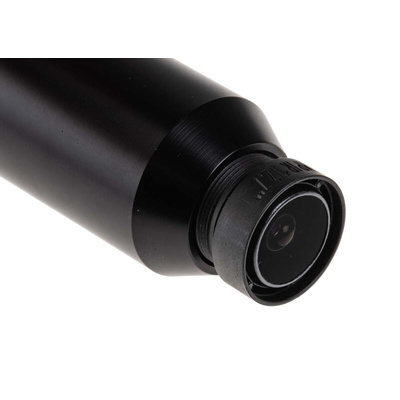

• Miniature bullet CCTV camera


• Analogue HD output


• Maximum resolution of 1280 x 720 pixels


• Minimum illumination of 0.02 lux for lack and white, and 0.08 lux for colour output


• 40 IR LEDs, DNR, WDR and SENS-UP technologies allow for day and night surveillance


• Built-in OSD key for ease of use in the field


• Mega f=2.8∼12mm DC IRIS ICR Lens, for suitability in outdoor applications


• Operating voltage of 12 V DC

• 720P AHD Video output


• ADH Transmission max 300 m (3C-2V)


• Colour 0.1 Lux, B/0.05 Lux


• 3D-DNR, D-WDR, Sens-up


• Total pixels 1312 (H) x 993 (V)


• Active Pixels 1297 (H)


• Progressive scanning


• AHD 720 P Resolution


• Lens Mega f = 3.6 mm fixed lens


• Electronic shutter – NTSC 1/30 – 1/50,000 sec (auto), PAL – 1/25 – 1/50,000 sec (auto)


• Auto shutter speed


• SENS-UP Auto (x6)


• Dat and night Auto


• 3D-DNR


• Operating temperature range -10°C to +50°C


• Weight 110 g including bracket


• Aluminium housing


• Camera dimensions 19 mm diameter x 71 mm length

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Power source is not included
