Artesyn Embedded Technologies Switching Power Supply, LCC600-12U-9P, 12V dc, 50A, 600W, 1 Output, 127 → 374 V, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

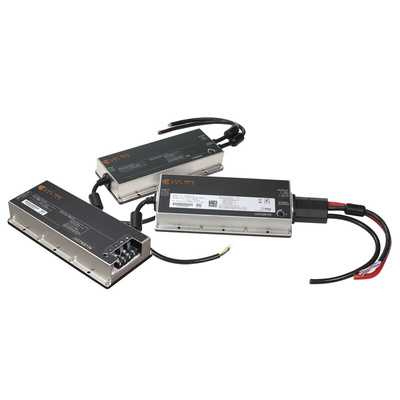

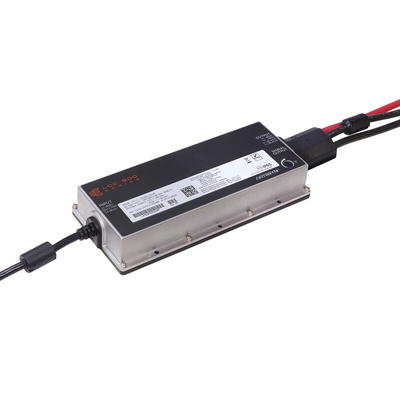

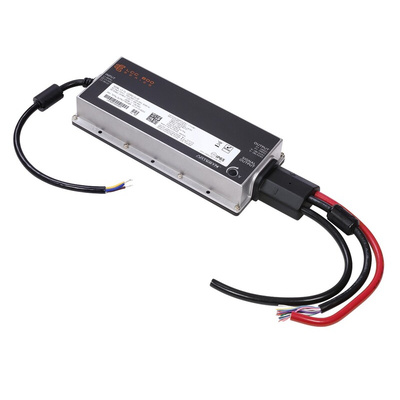

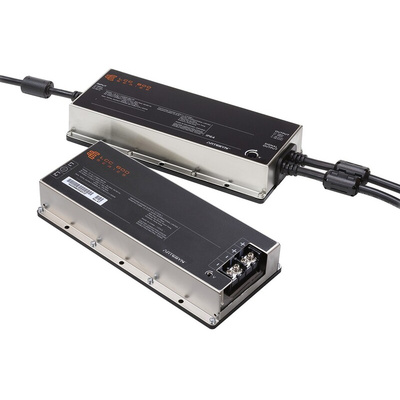

The Artesyn Embedded Technologies embedded switch-mode power supply from the LCC 600 series is a 600W rated, AC to DC plug-in device with 1 output. This power supply incorporates a thermal baseplate that makes it capable of delivering full output power over a wide operating temperature range between -40°C and 85°C. It has an adjustable main output for maximum applications flexibility. It has a universal input supply voltage rating range from 90VAC to 264VAC. The device is suitable for BF-type applications.

Features and Benefits

Active current share
Active power factor correction
Conduction-cooled/fanless
Output current is 12VDC at 50A
PMBus
Remote output ON/OFF
Standby voltage is 5V

Certifications

CB
CCC
CE certified
CISPR22/EN55022 class B
CSA
EMI class B
EN61000
FCC class B
IP65 rated
Medical and ITE safety3
TUV

LCC600-12U-9P - Data Sheet
