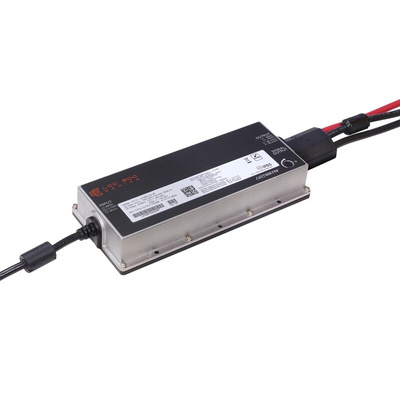

Artesyn Embedded Technologies Switching Power Supply, LCC600-28U-9P, 28V dc, 21.4A, 600W, 1 Output, 127 → 374 V, Источник питания

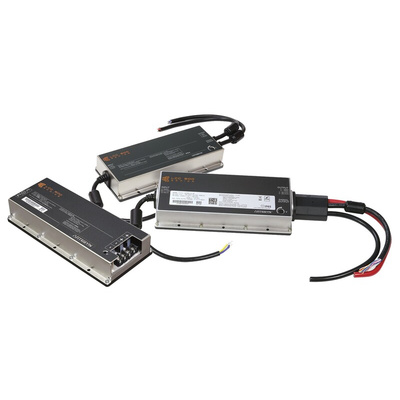

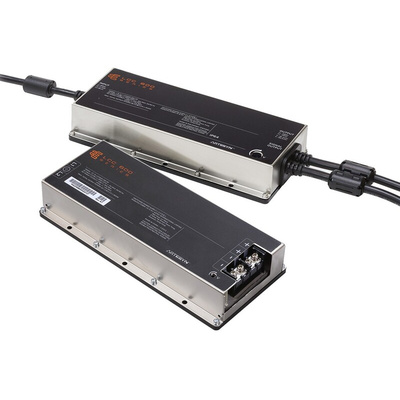

The LCC600 series of fully enclosed conduction cooled AC-DC power supplies comprises four models, offering main output voltages of 12 V, 28 V, 36 V or 48 V. Each model also provides a 5 Vdc standby output that can supply up to 1.5 amps. Rated at 600 watts, these power supplies incorporate a thermal baseplate and are capable of delivering full output power over a wide operating temperature range of -40 to 85˚C. For maximum applications flexibility, the main output is adjustable. The 48 V model, for example, can be adjusted from 44 to 54 V and has a maximum current rating of 12.5 amps.

601 W Single Output with 5 VDC Standby
Conduction Cooled / No Fan
-40 to 85 °C Baseplate Temp (No Derating)
Active Current Share
Active PFC
AC_OK, DC_OK Signals
I2C / PMBus

Datasheet_LCC600 Series
