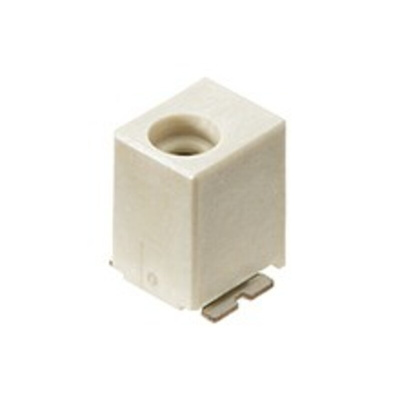

202394-0110, Molex Lite-Trap Series Straight Surface Mount PCB Header, 1 Contact(s), 1 Row(s), Shrouded

Ideal for thin LED lighting-module applications, Molex’s Lite-Trap SMT wire-to-board connectors offer easy wire removability and low-profile top-and-bottom entry styles for reduced shadowing

Low-profile top-and-bottom entry styles
User-friendly push-button latch
Low wire insertion and high wire retention forces
Long wire insulation design
Compact industry-standard PCB pattern layout
Wire stopper feature
Dual-contact gate-style terminal design
Provide reduced shadowing effects for LED applications
Ensures easy wire extraction
Enables easy wire insertion: provides secure contact retention
Provides stable wire placement for additional contact assurance
Saves space and is drop-in compatible with certain competitive products
Facilitates correct wire insertion depth placement
Provides secure electrical contact and high wire-retention force
