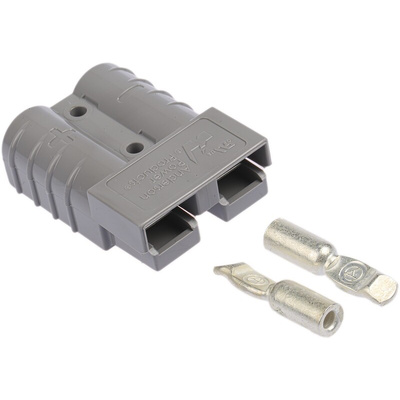

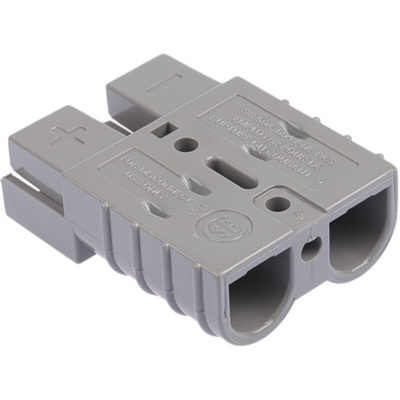

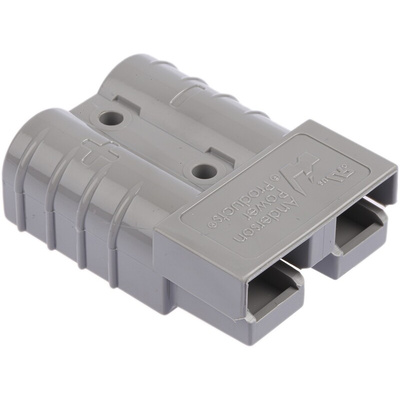

6319G1, Anderson Power Products, SB50 Series Male 2 Way Battery Connector, Cable Mount, 50A, 600 V

SB50 Series battery connector

From Anderson Power Products is a SB50 series male battery connector. It is cable mounting type, 50A of current rating and 600V of voltage rating. Their genderless design assures versatility and convenience, and the single piece housing is robust and practical. Mechanically keyed colour coded housings prevent accidental mating of equipment operating at different voltages.

Features and Benefits:

Mechanical keyed housings – prevents accidental mating of components operating at different voltages
Assembly fast and easy due to the non-gendered design
Low Resistance Silver- or Tin-Plated Copper Contacts
UL Rated for Hot Plugging up to 50 Amps
Wire, PCB, and Busbar Contacts
Operating temperature range -20°C to +105°C
Flammability rating UL94 V-0

Note

The SB50 series has bee re-tested under the UL standard and due to this it has been up-rated to 120A. The housing will still state SB50 and show 50A rating until further notice. Please refer to the new datasheet for details.
