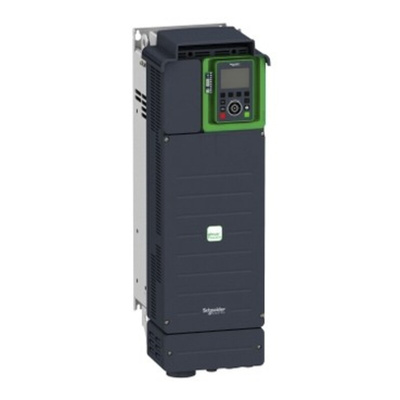

ATV930D37N4, Schneider Electric Variable Speed Drive, 30 kW, 37 kW, 3 Phase, 400 V ac, 54.8 A, 66.2 A, ATV930 Series

Schneider Electric Variable Speed Drive

The Altivar ATV930D37N4 is a variable speed drive for three-phase synchronous and asynchronous motors from Schneider Electric. The Altivar Process 900 series is focused on maximum productivity with exceptional motor control and connectivity. It has been designed to meet requirements of the most demanding systems and can be applied within a wide range of industries.

Features and Benefits:

• Professional Variable Speed Drive for industrial application
• Suitable for asynchronous and synchronous motors
• Excellent motor performance on induction or permanent magnet motors
• Total management and flexibility of speed and torque on rigid and elastic coupling
• Simple exchange of power modules and fans

Typical applications:

Altivar ATV930 has been specially designed for the following industries:
• Oil & gas
• Mining, minerals & metals
• Food & beverage
• Water & waste water

It offers special functionalities for the industrial process segments, such as:
• Excellent motor performance on any type of motor
• Total control of any kind of coupling in master/slave applications
• Network services help ensure operation continuity even in case of connection breakdown
• Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance

Aprovals & Certification:

• CSA
• TÜV
• UL
• REACH
• IEC 13849-1 / IEC 61508 / IEC 60721-3 / IEC 61000-3-12
• EN/IEC 61800-5-1 / EN/IEC 61800-3 (environment 2 category C3) / EN/IEC 61800-3 (environment 1 category C2) / EN/IEC 61800-3
• UL 508C\n
• CE
• IP21
• UL type 1 conforming to UL 508C

Variable Speed Drivers
Altivar Process ATV900
Three-Phase Supply Voltage :380 to 480 V 50/60 Hz
