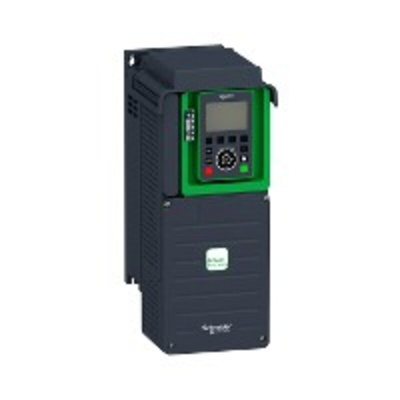

ATV930U75N4, Schneider Electric Variable Speed Drive, 7.5 kW, 3 Phase, 400 V ac, 10.5 A, 13.8 A, ATV930 Series

ATV930 variable Speed Drive with EMC Filter

The Altivar Process ATV930 variable speed drive is for demanding applications that have a power rating ranging from 0.75 kW to 800 kW. It is a Services Oriented Drive that has been designed and created to reduce OPEX in process and utilities installation, this is all thanks to the embedded EcoStruxure machine advisor. The Altivar ATV930 is a ready to order, three-phase drive that has been custom engineered to focus on maximum productivity and allows for exceptional control and connectivity.

Features and Benefits

• Features an embedded power measurement and energy dashboard along with embedded process monitoring and control.
• Low harmonics (THDi < 48% at 80% load or THDi < 5% with low harmonic offer)
• Stop and Go function to reduce energy consumption when the machine is on standby, this feature can save your company up to 60% in energy. There is up to a 20% downtime reduction that can be saved, without any additional investment.
• Asset monitoring and protection as well as drift monitoring.
• This particular model offers easy maintenance via a dynamic QR-Code.
• Easy and seamless integration with embedded Ethernet, so that you can use devices to process control with smart phones, also from data insights with the embedded Web Server.
• With the Altivar ATV930, you will achieve sustainable cost savings because of the predicative condition-based maintenance. .
• Has an excellent motor performance.
• The breaking functionality allows the Altivar ATV930 to continue operating whilst coming to a halt, this is done through dissipating the braking energy and enabling maximum transient braking torque.
• Custom engineered drive, real time intelligence and enhanced drive specifications.
• There is a regenerative functionality which allows drives to be readily connected.
• This model sits within the ATV3900 range.

Where can I use my ATV930 VFD?

The Altivar Process VFD (variable Frequency Drive) has been specially designed for a multitude of industrial and commercial processes:
• Stackers and Reclaimers
• Mills and Kilns
• Crushers
• Grinders
• Mixers and Conveyors
• Special cranes
• Ship loaders
• Dairy beverage and agribusiness applications
• Decanters in various water and wastewater applications
• Oil and Gas
• Mining, minerals & metals

Can the AVT930 Process Drive run more than one motor?

This is possible to run more than one motor from a single drive but each motor will need separate external overload protections. Both motors can share the same operations and the start and stop speed reference controls.

Schneider ATV930U75N4T Variable Frequency Drive - Three-Phase Supply Voltage: 380 to 480 V 50/60 Hz

The power rating of this Schneider Electric Inverter Drive is 5.5/ 7.5 kW with a supply voltage of 400 V. This VFD’s overall length is only 171mm which makes it easy and simple to handle and install.
