T0056103699N, Weller Electric Soldering Iron, 230V, 60W, Паяльник

Weller W Series Magnastat Electric Soldering Irons

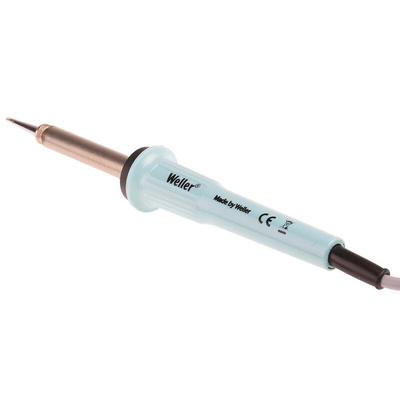

W 61 Magnastat Line Voltage Electric Soldering Iron.

From Weller this is the W 61 Electric Magnastat controlled soldering iron, an important piece of any soldering equipment. The soldering iron is also supplied with A CT 5 B7 Chisel Solder tip. A Magnastat solder system works through a ferro-magnetic sensor and changes the character of the system when required temperatures are reached and in turn operates the built-in magnet and the power supply switch. The soldering system is truly versatile, providing additional power when soldering, reducing power when not in use and switching on and off quickly.

Features and Benefits.

• W61 Soldering iron.


• Magnastat controlled.


• Built-in ferro magnetic sensing system.


• Ferromagnetic sensing device enable you to use extra power for soldering or reduce power when not in use.


• Line voltage.


• Voltage 230 V.


• Power 60 W.


• Temperature range 370°C.


• Tip Range CT 5.


• Tip type HM.


• ESD safe.

What is Included?

• W 61 Model soldering iron.


• Solder tip CT5 B7, chisel soldering tip, 516937.


• Power cable.

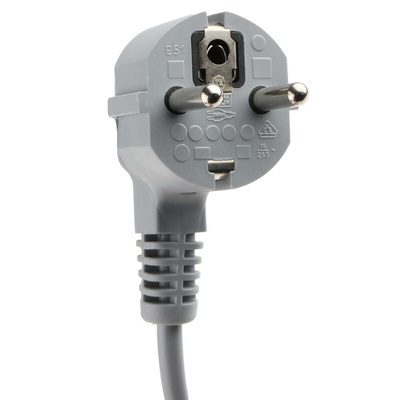

• Type F Schuko plug.

Typical Applications.

• Simple electrical and electronic work.


• Fixing and creating electrical current connections from installations to repairs.

Weller Solder Tips Available.

• LT GW2, 0.35 mm Concave hoof solder tip, stock number 1766887.


• CT5B7, screw tip, stock number 516937


• CT5A7, 1.6 mm Straight chisel soldering iron tip, stock number 516909.


• 4CT5A8-1, 1.6 mm, screw tip, stock number 516915.

Soldering Stands/Rests Available.

• WDC soldering Iron Tip Cleaner, stock number 5178546.

Solder Accessories Available.

• Weller solder adapter, stock number 1622588.


• Weller solder adapter for use with LR21, stock number 4882474.
