T0056104699N, Weller Electric Soldering Iron, 230V, 100W, Паяльник

W 101 Magnasat Line Voltage Electric Soldering Iron.

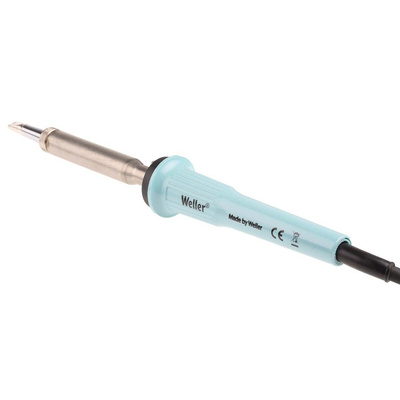

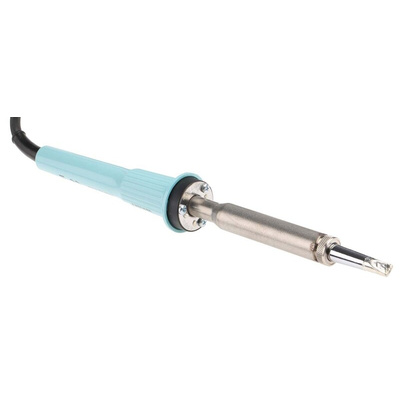

From Weller this is the W 101 Electric Magnastat controlled soldering iron, an important piece of any soldering equipment. The soldering iron is also supplied with a CT 6 E7 Chisel Solder tip and safety rest. A Magnastat solder system works through a ferro-magnetic sensor and changes the character of the system when required temperatures are reached and in turn operates the built-in magnet and the power supply switch. The soldering system is truly versatile, providing additional power when soldering, reducing power when not in use and switching on and off quickly. Various types of soldering are possible with the pre-selected soldering tip temperatures available through changing the temperature sensing soldering tip.

Features and Benefits.

• W101 Soldering iron.


• Magnastat controlled.


• Built-in ferro magnetic sensing system.


• Ferromagnetic sensing device enable you to use extra power for soldering or reduce power when not in use.


• Line voltage.


• Voltage 230 V ac.


• Power 100 W.


• Temperature range 370°C.


• Tip Range CT 6 (LT, PT).


• Tip Type HM.


• ESD Safe.

What is Included?

• W 101 Model soldering iron.


• Solder tip CT6 E7, chisel soldering tip.


• EMEA Power cable.

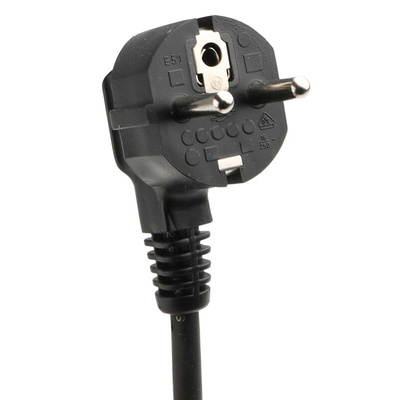

• Type F Schuko plug.

Typical Applications.

• Simple electrical and electronic work.


• Fixing and creating electrical current connections from installations to repairs.

Weller Solder Tips Available.

• CT6C7, 3.2 mm Straight chisel solder tip, stock number 661863.


• CT6E8. 3.2 mm Straight chisel solder tip, stock number 517025.


• CT6 D7, 5 mm Straight chisel solder tip, stock number 1766872.

Soldering Stands/Rests Available.

• KH 6 Soldering iron stand, stock number 660646.
