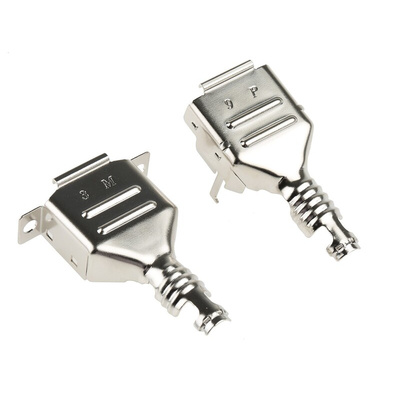

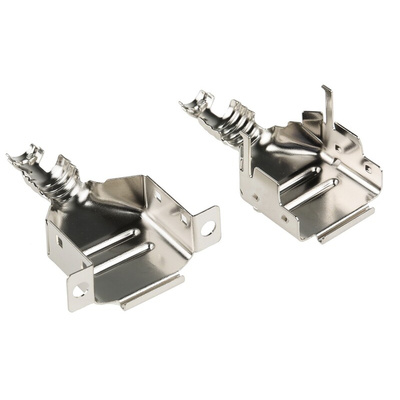

3357-9209, 3M 3357 Series Steel D Sub Backshell, 9 Way, Strain Relief

3M 9 to 37-Way Metal Backshells

From 3M, this metal D-SUB connector case is a hard case designed to house D-Sub connector components. It is robust and light weight, and an integral part of the D connector design.

Feautres and Benefits

• Metal shells accept round ribbon cable
• Rapid assembly time
• Ensures protection from EMI/ESD
• For mounting thumb screws see stock no. 448-5578

Applications

This D-Sub connector is designed to be used with round ribbon cable and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M Steel D-Sub Backshell, 9 Way, Straight Body - 3357 Series - 3357-9209

Protect your D-subminiature (D-sub) round ribbon cable connectors with this robust backshell from 3M. It's designed to house nine-way connectors and is made of durable steel for impact resistance. The shell also offers you effective shielding from electromagnetic interference (EMI), so you can achieve noiseless signal transmission. It also provides strain relief for your cables, preventing them from twisting and suffering damage. You can use this component at home with your personal computer and in the office with projectors or mainframe devices.

• Straight body orientation to fit compatible connector precisely• Durable thermoplastic cover nut ensures a secure hold on the connector• Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal traces of any harmful materials

Applications

• Printers, scanners and copiers• X-ray equipment• Telecommunications systems

How do I install this backshell?

To install the backshell, first loosen the screws holding it together to divide it into two halves. One half goes above the connector and the other goes under it. Fit the two halves together and screw them tightly.

3357 Series EMI/ESD Shell Assembly Instructions

Datasheet
