3357-9215, 3M 3357 Series Steel D Sub Backshell, 15 Way

3M 9 to 37-Way Metal Backshells

From 3M, this metal D-SUB connector case is a hard case designed to house D-Sub connector components. It is robust and light weight, and an integral part of the D connector design.

Feautres and Benefits

• Metal shells accept round ribbon cable
• Rapid assembly time
• Ensures protection from EMI/ESD
• For mounting thumb screws see stock no. 448-5578

Applications

This D-Sub connector is designed to be used with round ribbon cable and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M D-Sub Backshell, 15 Contacts, Steel Housing Material - 3357 Series - 3357-9215

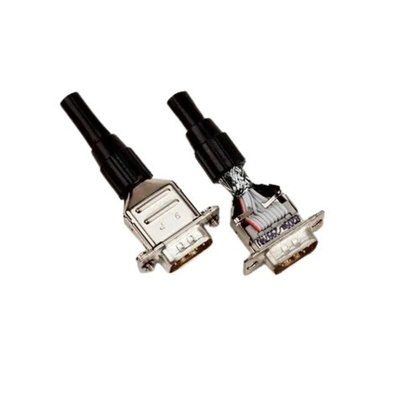

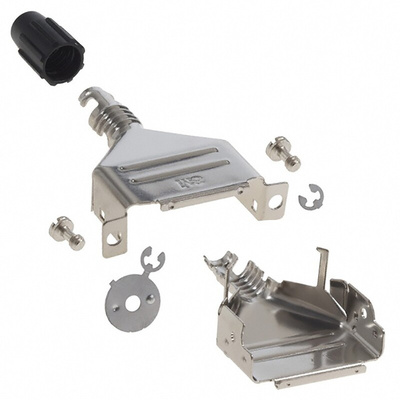

Need to create reliable links for the effective functioning of your electronics equipment? This steel D-sub backshell from 3M is a hard connector case that secures your round-ribbon cable connections. Assembly is quick and easy, thanks to detachable parts that quickly screw together once you've terminated your wired contacts. Protection against EMI interference assures you of dependable signal transmissions.

• Nickel-plated steel casing is hardwearing for an extended service life
• Compliance with the UL94V-0 standard means the product won't spread fires
• RoHS certification means this product contains only minimal amounts of any dangerous substances and isn't harmful to health

Applications

• Server rooms
• Telecommunications industry
• Computing
• Robotic systems

How do I choose the right size D-sub backshell?

The number of pins (contacts) on your connector determines the size of your D-sub backshell. This 3M housing accommodates a 15-pin connector.

3357-92XX Series D Sub Connector Data Sheet

3357 Series EMI/ESD Shell Assembly Instructions

Line Drawing - 3357-9215
