10150-6000EL, 3M Male 50 Pin Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT, Разъем

IDC Wiremount Plugs (MDR) Shielded

From 3M, this range of 101 Series Mini D Ribbon (MDR) Connectors are .050" IDC Wiremount Shielded Plugs. The design of the 101 Series Mini D Ribbon (MDR) Connectors, provides IDC terminations for the individual cores and wiper-on-wiper contact. The 101 Series MDR Wiremount Plug accepts various cable constructions including round, flat, twisted pair and twinax.

Features and Benefits:

• Can be used in conjunction with metal backshells series stock no. 163-3358 and stock no. 194-2949 typical
• Excellent EMI/ESD protection
• Mates with PCB receptacle stock no. 499-9752 typical

The 3M range of IDC Wiremount Plugs includes:

• 101xx-6000Ex = Gold Flash over Ni IDC plating
• 101xx-6000xL = Contact area Au 0.2 μm, Tail area Au flash with lubricant treatment
• 101xx-6000xC = Contact area Au 0.7 6 μm, Tail area Au flash
• 101xx-6x0xxx = Black cover
• 101xx-6x1xxx = Gray cover

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

See 3M IDC ribbon cable – typically stock no.120-8413. Dedicated tooling is also available – see stock no. 120-6962 and range.

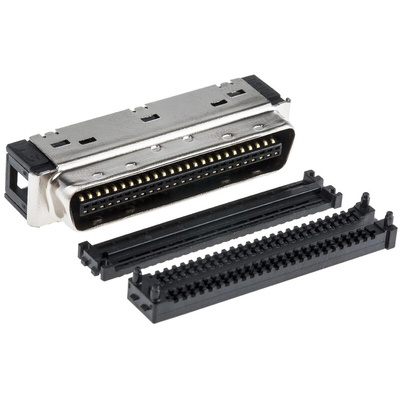

3M Male Right Angle Cable Mount SCSI Connector, 50 Way, 1.27mm Pitch - 101 Series - 10150-6000EL

This robust small computer systems interface (SCSI) connector from 3M is used for connecting peripheral devices to computers. The 50-pin cable-mount connector has beryllium-copper contacts that ensure reliable conductivity and a stable link. These contacts are plated with gold over nickel to prevent corrosion and enable long-term use without risk of rust or decay. Thanks to its steel housing material, you won't need to worry about electromagnetic interference (EMI) while using this connector. It's commonly used to link hard drives and devices such as CD-ROMs (compact disk read only memory).

• Right-angle body orientation for easy installation in hard-to-reach areas• Compact length of 41.1mm to fit into small spaces• Cable-mounting type for easy and toolless installation• Compatible with a wide variety of cable constructions for versatility of use• Glass-reinforced polyester insulation to protect from electric shock

Applications

• Personal computers• Programmable logic controllers (PLCs)

Is it possible for two or more devices to access the same SCSI device?

Two or more hosts can be on the same SCSI bus as long as the hardware requirements are met.

Standards

IDC; MIL-G-45204; IEEE 1284

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

101 Series MDR Connectors Data Sheet

10960-2000 MDR Assembly Press - Instructions
