10320-A200-00, 3M 103 Series Die Cast Aluminium D Sub Backshell, 20 Way, Strain Relief

3M Round Cable Metal Backshell

This range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors metal, IDC Plug, Round Cable Junction Shells, have a two-piece Backshell with Quick Relase Latching mechanisms. The design of these 103 Series MDR Junction Shell features a metal Strain Relief providing cable shield to shell conductivity.

Features and Benefits

• Straight exit for round cables
• Suitable for use with IDC plugs stock no. 163-3285 (typically)
• Excellent EMI/ESD protection

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M D-Sub Backshell, Straight Body Orientation, With EMI Protection - 103 Series - 10320-A200-00

Bridge the gap between devices in your Ethernet system with this D-sub backshell from 3M. The mini connector is just what you need for hooking up the round cables in your equipment. Die-cast aluminium construction means it's built for the long haul and is up for the challenge of harsh settings. As the shell's protected against electromagnetic interference, there's minimal chance of it blurring the lines of communication in your data network.

Features & Benefits

• Quick-release latching, for speedy connecting and disconnecting
• Strain relief reinforces the cable connection, so there's little risk of it breaking
• Resists corrosion, making it suitable to use in humid locations

Applications

• Robotics and automation
• Business centres
• Hospitals and medical facilities

Does this D-sub backshell come with any fittings?

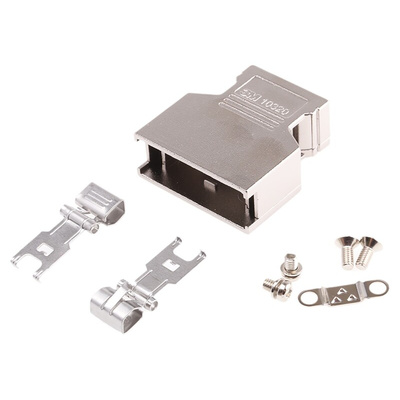

Yes, this backshell comes as a complete unit that's ready to use. It includes screws, a cable clamp and two metal latches.

Standards

IDC

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

103 xx-A200 Series 0.50 Inch MDR Connectors Data Sheet
