10326-A200-00, 3M 103 Series Aluminium D Sub Backshell, 26 Way, Strain Relief

3M Round Cable Metal Backshell

This range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors metal, IDC Plug, Round Cable Junction Shells, have a two-piece Backshell with Quick Relase Latching mechanisms. The design of these 103 Series MDR Junction Shell features a metal Strain Relief providing cable shield to shell conductivity.

Features and Benefits

• Straight exit for round cables
• Suitable for use with IDC plugs stock no. 163-3285 (typically)
• Excellent EMI/ESD protection

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

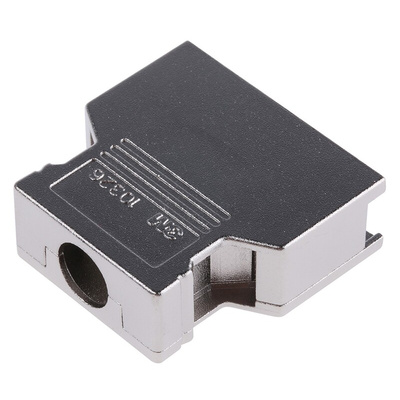

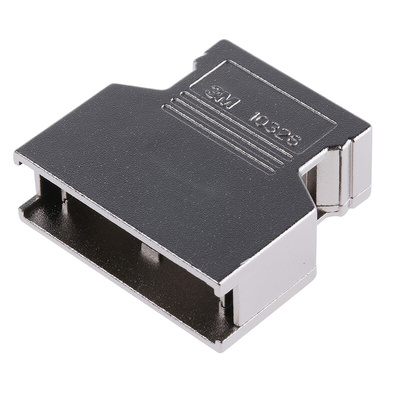

3M Die-Cast Aluminium D Sub Backshell, 26 Way, Straight Body - 103 Series - 10326-A200-00

Protect your mini D-ribbon (MDR) cables with this heavy-duty backshell from 3M. Made of durable die-cast aluminium material, this sturdy component provides you with superior impact resistance so you can use your cables in harsh environments. The unit provides effective shielding from electromagnetic interference (EMI), so you get crisp and clear signals without noise or interruption. It also offers protection from electrostatic discharge (ESD) for optimal electrical safety. It's designed for 26-way MDR cables and is commonly used in the electronics and automation industries.

• Quick-release latching mechanism for easy installation and removal of the cable• Metal strain-relief clamp protects the cable from twisting and provides grounding for the cable shield• Nickel plating for extra corrosion resistance to give long term performance• Compact size to fit in small spaces

Applications

• Digital photo and video cameras• Personal computers• Multimedia devices

Does this backshell offer heat resistance?

This backshell is made of a die-cast aluminium material. As this offers reliable resistance to high temperatures, it's suitable for use in demanding industrial conditions.

Standards

IDC

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

103 xx-A200 Series 0.50 Inch MDR Connectors Data Sheet
