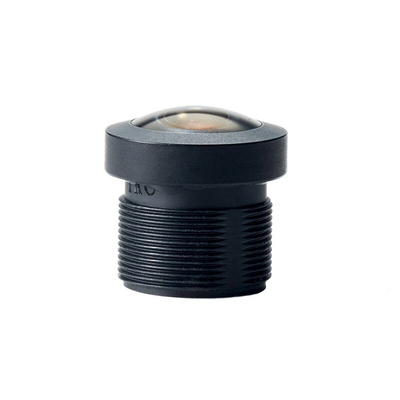

RP-L165N, DesignSpark, Blue Light Filter, Camera Lens Interchangeable Lens, Линза

Entaniya Raspberry Pi Camera M12 Lenses

Each lens is available with either an Infra-Red (IR) filter for use with a daylight camera or a blue light filter for use with the Pi NoIR camera. There are 4 different angles of lens, each with either the blue or IR filter for the RP-VC1N Camera Module (RS 163-3895):

Lens Options - view the street scene sample images above for an example output from each lens.

220º Fish Eye Lens
RP-L220 - RS 163-3896 - IR Filter
RP-L220N - RS 163-3898 - Blue Light Filter

195º Fish Eye Lens
RP-L195 - RS 163-3899 - IR Filter
RP-L195N - RS 163-3900 - Blue Light Filter

165º Ultra-Wide Angle Lens
RP-L165 - RS 163-3901 - IR Filter
RP-L165N - RS 163-3902 - Blue Light Filter

98º Wide Angle Lens
RP-L98 - RS 163-3903 - IR Filter
RP-L98N - RS 163-3905 - Blue Light Filter

Note

Mounting bracket required. Please see 167-5919 and 167-5921.

Raspberry Pi Cameras

Dimensional Drawings

Dimensional Drawings

Entaniya Interchangeable Lens Range
